Question
In the given figure, if $\angle\text{AOB} = 80^\circ$ and $\angle\text{ABC} = 30^\circ,$ then find $\angle\text{CAO.}$
✓
Answer
Consider the given circle with the centre ‘O’. Let the radius of this circle be ‘r’. ‘AB’ forms a chord and it subtends an angle of 80° with its centre, that is $\angle\text{AOB}=80^\circ.$ The angle subtended by an arc at the centre of the circle is double the angle subtended by the arc in the remaining part of the circle.
So, here we have$\angle\text{ACB}=\frac{\angle\text{AOB}}{2}$
$=\frac{80^\circ}{2}$
$\angle\text{ACB}=40^\circ$
In any triangle the sum of the interior angles need to be equal to 180°. Consider the triangle $\triangle\text{AOB}$$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$
Since, OA = OB = r, we have $\angle\text{OAB}=\angle\text{OBA}.$ So the above equation now changes to$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$
$2\angle\text{OAB}=180^\circ-\angle\text{AOB}$
$=180^\circ-80^\circ$
$2\angle\text{OAB}=100^\circ$
$\angle\text{OAB}=50^\circ$
Considering the triangle $\triangle\text{ABC}$ now,$\angle\text{ACB}+\angle\text{OAB}+\angle\text{OAC}+\angle\text{ABC}=180^\circ$
$\angle\text{OAC}=180^\circ-\angle\text{ACB}-\angle\text{OAB}-\angle\text{ABC}$
$=180^\circ-40^\circ-50^\circ-30^\circ$
$\angle\text{OAC}=60^\circ$
Hence, the measure of $\angle\text{CAO}$ is 60°.
So, here we have$\angle\text{ACB}=\frac{\angle\text{AOB}}{2}$$=\frac{80^\circ}{2}$
$\angle\text{ACB}=40^\circ$
In any triangle the sum of the interior angles need to be equal to 180°. Consider the triangle $\triangle\text{AOB}$$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$
Since, OA = OB = r, we have $\angle\text{OAB}=\angle\text{OBA}.$ So the above equation now changes to$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$
$2\angle\text{OAB}=180^\circ-\angle\text{AOB}$
$=180^\circ-80^\circ$
$2\angle\text{OAB}=100^\circ$
$\angle\text{OAB}=50^\circ$
Considering the triangle $\triangle\text{ABC}$ now,$\angle\text{ACB}+\angle\text{OAB}+\angle\text{OAC}+\angle\text{ABC}=180^\circ$
$\angle\text{OAC}=180^\circ-\angle\text{ACB}-\angle\text{OAB}-\angle\text{ABC}$
$=180^\circ-40^\circ-50^\circ-30^\circ$
$\angle\text{OAC}=60^\circ$
Hence, the measure of $\angle\text{CAO}$ is 60°.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
P, Q, R, S are respectively the midpoints of the sides AB, BC, CD and DA of ||gm ABCD. Show that PQRS is a parallelogram and also show that$\text{ar}(||\text{gm PQRS})=\frac{1}{2}\times\text{ar}(||\text{gm ABCD}).$
→In the given figure, O is the centre of a circle. If $\angle\text{AOC}=140^\circ$ and $\angle\text{CAB}=50^\circ,$ calculate
→- $\angle\text{EDB}$
- $\angle\text{EBD}$
In each of the figures given below, ABCD is a rhombus. Find the value of x and y in each case.
In the following table, the information of number of girls per 1000 boys is given for different states. Fill In the blanks and complete the table.
PQRS is a trapezium having PS and QR as parallel sides. A is any point on PQ and B is a point on SR such that AB || QR. If area of $\triangle\text{PBQ}$ is $17cm^2$,
find the area of $\triangle\text{ASR}.$
→find the area of $\triangle\text{ASR}.$
Complete the following Cumulative Frequency Table:
In the adjoining figure, ABCD is a cyclic quadrilateral in which $\angle\text{BCD}=100^\circ$ and $\angle\text{ABD}=50^\circ.$ Find $\angle\text{ADB}.$
→In Fig. $\text{AM}\perp\text{BC}$ and AN is the bisector of $\angle\text{A}.$ If $\angle\text{B}=65^\circ$ and $\angle\text{C}=33^\circ,$ find $\angle\text{MAN}.$
→In the given figure, AB and CD are straight lines through the centre O of a circle. If $\angle\text{AOC}=80^\circ$ and $\angle\text{CDE}=40^\circ,$ find
→- $\angle\text{DCE}$
- $\angle\text{ABC}$

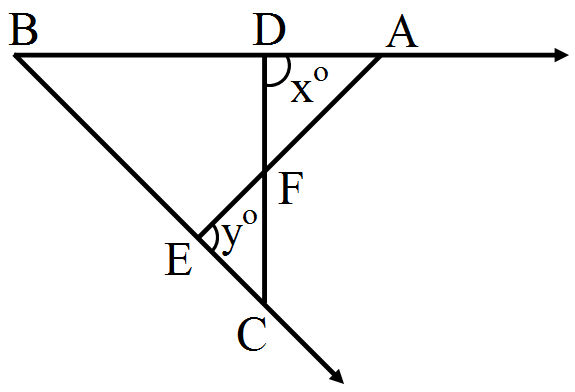

In the given figure, if x = y and AB = CB then prove that AE = CD.
