In the transient shown the time constant of the circuit is :
Advanced
Download our app for free and get started

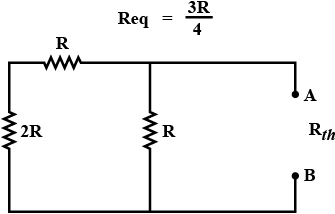

Applying Thevenin's theorem we consider the circuit from right side and short circuiting the voltage sources and opening the extreme right resistance we get the equivalent resistance
$=\frac{1}{R_{t h}}=\frac{1}{3 R}+\frac{1}{R}=\frac{4}{3 R}=\frac{3 R}{4} R_{t h}=$ Thevenins resistance
So now adding the remaining resistance $\mathrm{R}$ with $R_{t h}$ in series we get the equivalent resistance
$R_{e q}=\frac{3 R}{4}+R=\frac{7 R}{4}$
And time constant $\tau=\mathrm{RC}$
$\tau=\frac{7}{4} \mathrm{RC}$
