Ionized hydrogen atoms and $\alpha$ -particles with same momenta enters perpendicular to a constant magnetic field $B$. The ratio of their radii of their paths $\mathrm{r}_{\mathrm{H}}: \mathrm{r}_{\alpha}$ will be
  • ✓
    $2:1$
  • B
    $1:2$
  • C
    $4:1$
  • D
    $1:4$
✓

Answer

Correct option: A.
$2:1$
a
$\frac{\mathrm{q}_{\mathrm{H}}}{\mathrm{q}_{\mathrm{\alpha}}}=\frac{1}{2}$

$r=\frac{m v}{q B}$

For same momenta, $r \propto \frac{1}{q}$

$\frac{r_{H}}{r_{\alpha}}=\frac{q_{\alpha}}{q_{H}}=\frac{2}{1}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 4. Moving charges and magnetism→4. Moving charges and magnetism — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

A series resonant $LCR$ circuit has a quality factor ( $Q-$ factor) $= 0.4$. If $R = 2\,k\Omega ,$ $C = 0.1\,\mu F,$ then the value of inductance is
→
Assertion : A compass needle when placed on the magnetic north pole of the earth rotates in vertical direction.
Reason : The earth has only horizontal component of its magnetic field at the north poles.
→
When an electron does transition from $n=4$ to $n=2$, then emitted line spectrum will be
→
In the white light of sun, maximum scattering by the air molecules present in the earth's atmosphere is for:
→

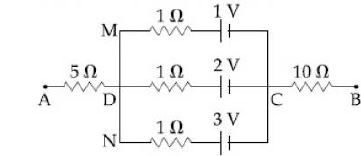

In the circuit shown, the potential difference between $A$ and $B$ is ............. $V$
→
