Question
Prove that $I _{ D }=\in_0 \frac{d}{d t}\left(\phi_{ E }\right)$, when symbols have their usual meanings.
✓
Answer
We know that :
$ \begin{aligned} I_{D} & =I \\ Or I & =\frac{d q}{d t} \end{aligned} $
By Gauss's law,
$ \begin{array}{l} E=\frac{q}{\in_0 A} \\ Or q=E \in_0 A \end{array} $
On putting values in eqn. (2)
$ I=\frac{d}{d t}\left(E \in_0 A\right) $
From equation (1),
$ \begin{array}{l}
\therefore \quad I_{D}=\in_0 A \frac{d}{d t}(E) \\ =\in_0 A \frac{d}{d t}\left(\frac{\phi_{E}}{A}\right) \quad \because \phi_{E}=EA \\=\frac{\in_0 A}{A} \frac{d \phi_{E}}{d t} \\ \text { or, } \\ I_{D}=\in_0 \frac{d}{d t}\left(\phi_{E}\right) \end{array}$
$ \begin{aligned} I_{D} & =I \\ Or I & =\frac{d q}{d t} \end{aligned} $
By Gauss's law,
$ \begin{array}{l} E=\frac{q}{\in_0 A} \\ Or q=E \in_0 A \end{array} $
On putting values in eqn. (2)
$ I=\frac{d}{d t}\left(E \in_0 A\right) $
From equation (1),
$ \begin{array}{l}
\therefore \quad I_{D}=\in_0 A \frac{d}{d t}(E) \\ =\in_0 A \frac{d}{d t}\left(\frac{\phi_{E}}{A}\right) \quad \because \phi_{E}=EA \\=\frac{\in_0 A}{A} \frac{d \phi_{E}}{d t} \\ \text { or, } \\ I_{D}=\in_0 \frac{d}{d t}\left(\phi_{E}\right) \end{array}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The density of an ideal gas is 1.25 × 10-3gcm3 at STP. Calculate the molecular weight of the gas.
A monochromatic light source of power 5mW emits 8 × 1015 photons per second. This light ejects photo electrons from a metal surface. The stopping potential for this set up is 2V. Calculate the work function of the metal.

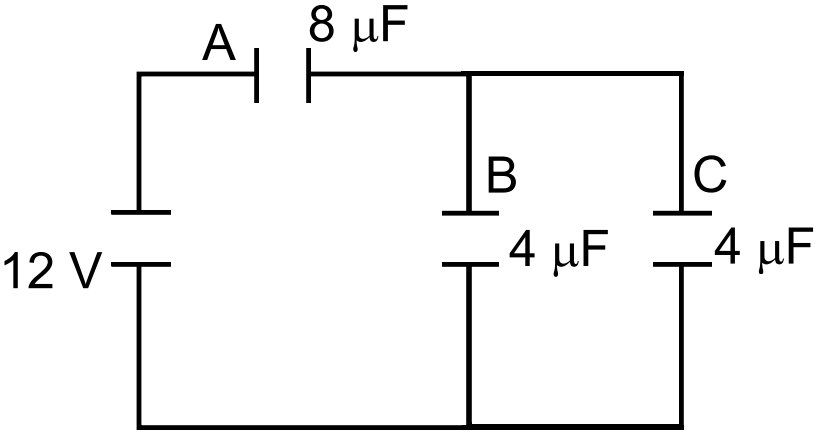

Find the charge appearing on each of the three capacitors shown in figure.
