Question
Prove that the path of one projectile as seen from another projectile is a straight line.
✓
Answer
The coordinates of one projectile as seen from another projectile are: $\text{X}=\text{x}_1-\text{x}_2=(\text{u}_1\cos\theta_1-\text{u}_2\cos\theta_2)\text{t}$ $\text{Y}=\text{y}_1-\text{y}_2$ $=(\text{u}_1\sin\theta_1)\text{t}-\frac{1}{2}\text{gt}^2-(\text{u}_2\sin\theta_2)\text{t}+\frac{1}{2}\text{gt}^2$$=(\text{u}_1\sin\theta_1-\text{u}_2\sin\theta_2)\text{t}$
$\therefore\ \frac{\text{Y}}{\text{X}}=\frac{(\text{u}_1\sin\theta_1-\text{u}_2\sin\theta_2)\text{t}}{(\text{u}_1\cos\theta_1-\text{u}_2\cos\theta_2)\text{t}}$
$=\frac{\text{u}_1\sin\theta_1-\text{u}_2\sin\theta_2}{\text{u}_1\cos\theta_1-\text{u}_2\cos\theta_2}=\text{m}$ (constant)
or, $\text{Y}=\text{mX}$
This equation represents straight line. Hence proved.
$\therefore\ \frac{\text{Y}}{\text{X}}=\frac{(\text{u}_1\sin\theta_1-\text{u}_2\sin\theta_2)\text{t}}{(\text{u}_1\cos\theta_1-\text{u}_2\cos\theta_2)\text{t}}$
$=\frac{\text{u}_1\sin\theta_1-\text{u}_2\sin\theta_2}{\text{u}_1\cos\theta_1-\text{u}_2\cos\theta_2}=\text{m}$ (constant)
or, $\text{Y}=\text{mX}$
This equation represents straight line. Hence proved.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A block of mass $2.0kg$ moving at $2.0m/s$ collides head on with another block of equal mass kept at rest.
→- Find the maximum possible loss in kinetic energy due to the collision.
- If the actual loss in kinetic energy is half of this maximum, find the coefficient of restitution.

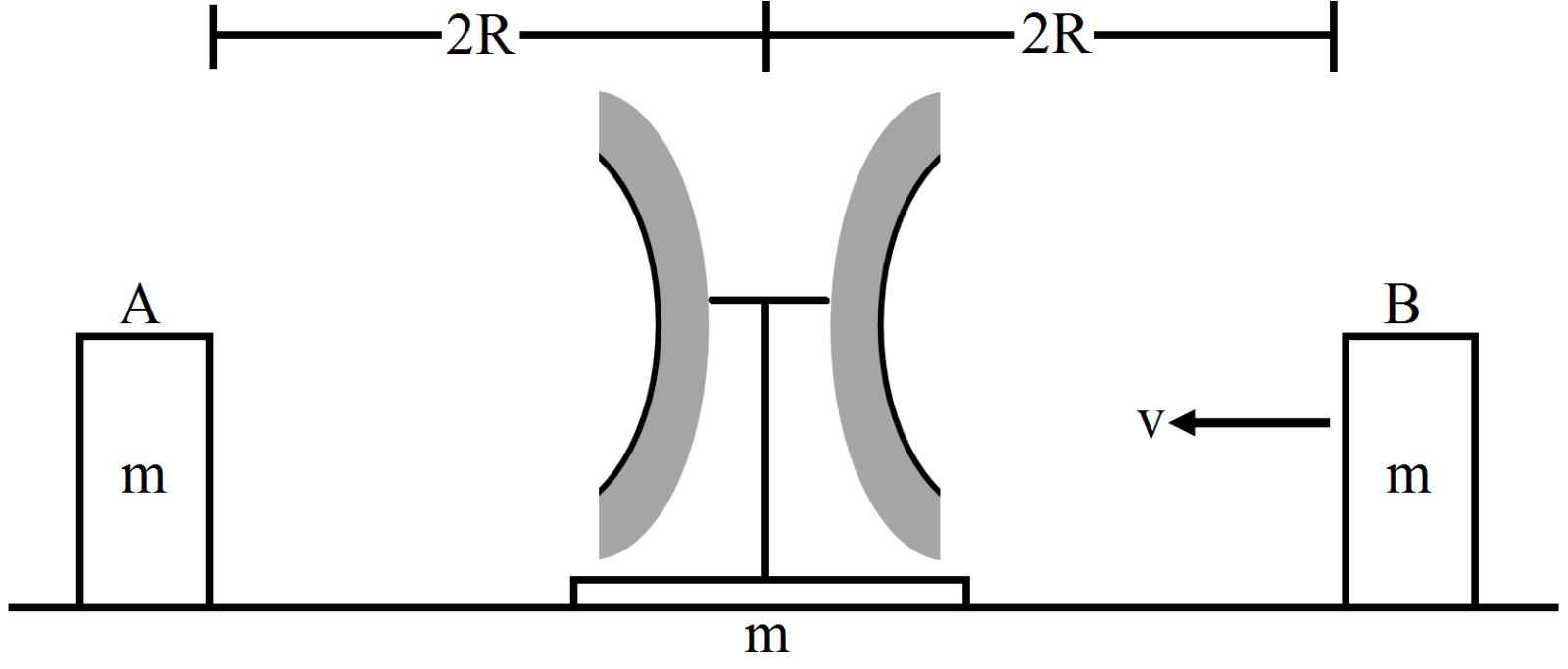

Two concave mirrors of equal radii of curvature R are fixed on a stand facing opposite directions. The whole system has a mass m and is kept on a frictionless horizontal table.
Two blocks A and B, each of mass m, are placed on the two sides of the stand. At t = 0, the separation between A and the mirrors is 2 R and also the separation between B and the mirrors is 2 R. The block B moves towards the mirror at a speed v. All collisions which take place are elastic. Taking the original position of the mirrors-stand system to be x = 0 and X-axis along AB, find the position of the images of A and B at t =
→ Two blocks A and B, each of mass m, are placed on the two sides of the stand. At t = 0, the separation between A and the mirrors is 2 R and also the separation between B and the mirrors is 2 R. The block B moves towards the mirror at a speed v. All collisions which take place are elastic. Taking the original position of the mirrors-stand system to be x = 0 and X-axis along AB, find the position of the images of A and B at t =
- $\frac{\text{R}}{\text{v}}$
- $\frac{3\text{R}}{\text{v}}$
- $\frac{5\text{R}}{\text{v}}$

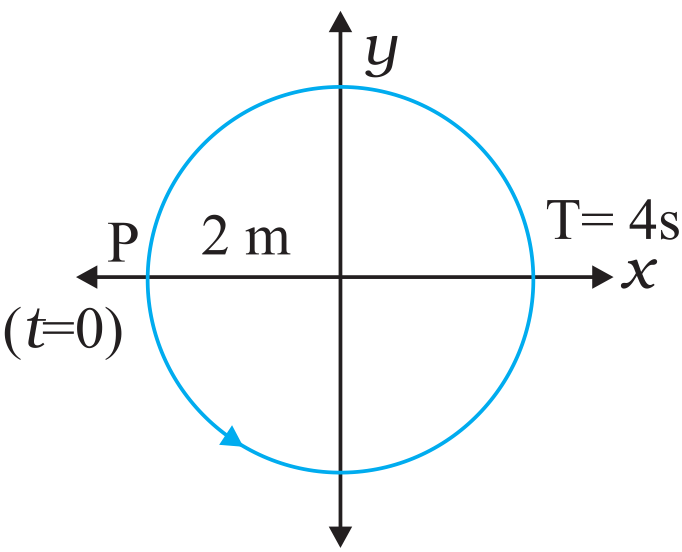

Figures correspond to two circular motions. The radius of the circle, the period of revolution, the initial position, and the sense of revolution (i.e. clockwise or anti-clockwise) are indicated on each figure.
