Circles — Maths STD 9 — Question

Gujarat BoardEnglish MediumSTD 9MathsCircles4 Marks
Question
Read the Source Text given below and answer these questions:

 There was a circular park in Defence colony At Delhi. For fencing purpose Poles $A, B, C$ and $D$ were installed at the circumference of the park. Ram tied wires From $A$ to $B$ to $C$ and $C$ to $D,$ He managed to measure the $\angle\text{A}=100^\circ$ and $\angle\text{D}=80^\circ$ The point $O$ in the middle of the park is the center of the circle. Now answer the following questions:
$i.$ What is the value of $\angle\text{B}?$
$a. 80^\circ $
$b. 100^\circ $
$c. 90^\circ $
$d. 70^\circ $
$ii.$ What is the value of $\angle\text{C}?$
$a. 80^\circ $
$b. 100^\circ $
$c. 90^\circ $
$d. 70^\circ $
$iii.$ What is the special type of quadrilateral $\text{ABCD}?$
$a.$ Square.
$b.$ Rectangle.
$c.$ Cyclic quadrilateral.
$d.$ Trapezium.
$iv.$ What is the property of cyclic quadrilateral?
$a.$ Opposite angles are supplementary.
$b.$ Adjacent angles are equal.
$c.$ Opposite angles are equal.
$d.$ Adjacent angles are complementary.
$v.$ What you will call the yellow shaded shape $\text{OBC}?$
$a.$ Segment.
$b.$ Arc.
$c.$ Chord.
$d.$ Sector.
✓

Answer

$(i)$ $(b)$ $100^\circ $
$(ii)$ $(a)$ $80^\circ $
$(iii)$ $(c)$ Cyclic quadrilateral.
$(iv)$ $(a)$ Opposite angles are supplementary.
$(v)$ $(d)$ Sector.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Case study (4 Marks)" from Circles→Circles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

Read the Source/ Text given below and answer these questions:
Once the Maths teacher of class $IX\ D$ told students that today we will prove that the sum of all three angles is $180^\circ .$ As shown in the figure, he told to draw any $\triangle ABC$ in the notebook.
Further side $BC$ was extended to $D.$

Now the teacher said to draw $CE \| BA.$ Further angles were named $1$ to $5$ as shown in the figure.
Now answer the following questions:
$i. BA \| CE$ and $AC$ is the transverse line, So $\angle1$ is equal to which angle$?$
$a. \angle2$
$b. \angle3$
$c. \angle4$
$d. \angle5$
$ii. \angle2$ is equal to which angle$?$
$a.\angle2$
$b.\angle3$
$c.\angle4$
$d. \angle5$
$iii.$ What is value of $\angle3+\angle4+\angle5?$
$a.180^\circ $
$b.120^\circ $
$c. 200^\circ $
$d. 360^\circ $
$iv.$ What is value of $\angle\text{ECD}=\angle4+\angle5?$
$a.\angle3+\angle5$
$b.\angle1+\angle2$
$c. \angle2+\angle3$
$d. \angle3+\angle4$
$v.$ What is value of $\angle1+\angle2+\angle3?$
$a.\angle3+\angle4+\angle5=180^\circ$
$b.360^\circ$
$c. \angle3+\angle4=100^\circ$
$d. 280^\circ$
→
Read the following text carefully and answer the questions that follow:

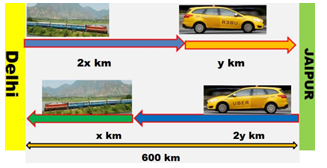

Ajay lives in Delhi, The city of Ajay's father in laws residence is at Jaipur is $600 \ km$ from Delhi. Ajay used to travel this $600 \ km$ partly by train and partly by car.
