Rotational Mechanics — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsRotational Mechanics5 Marks
Question
Solve the previous problem if the friction coefficient between the 2.0kg block and the plane below it is 0.5 and the plane below the 4.0kg block is frictionless.
✓

Answer


m1 = 4kg, m2 = 2kg

Frictional co-efficient between 2kg block and surface = 0.5

R = 10cm = 0.1m

I = 0.5kg-m2

$\text{m}_1\text{g}\sin\theta-\text{T}_1=\text{m}_1\text{a}\ \dots(1)$

$\text{T}_2-(\text{m}_2\text{g}\sin\theta+\mu\text{m}_2\text{g}\cos\theta)=\text{m}_2\text{a}\ \dots(2)$

$(\text{T}_1-\text{T}_2)=\frac{\text{la}}{\text{r}^2}$

Adding equation (1) and (2) we will get

$\text{m}_1\text{g}\sin\theta-(\text{m}_2\text{g}\sin\theta+\mu\text{m}_2\text{g}\cos\theta)+(\text{T}_1+\text{T}_2)=\text{m}_1\text{a}+\text{m}_2\text{a}$

$\Rightarrow4\times9.8\times\Big(\frac{1}{\sqrt2}\Big)-\Big\{\Big(2\times9.8\times\Big(\frac{1}{\sqrt2}\Big)+0.5\times2\times9.8\times\Big(\frac{1}{\sqrt2}\Big)\Big\}$

$=\Big(4+2+\frac{0.5}{0.01}\Big)\text{a}$

$\Rightarrow27.80-(13.90+6.95)=65\text{a}$

$\Rightarrow\text{a}=0.125\text{ms}^{-2}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Rotational Mechanics→Rotational Mechanics — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

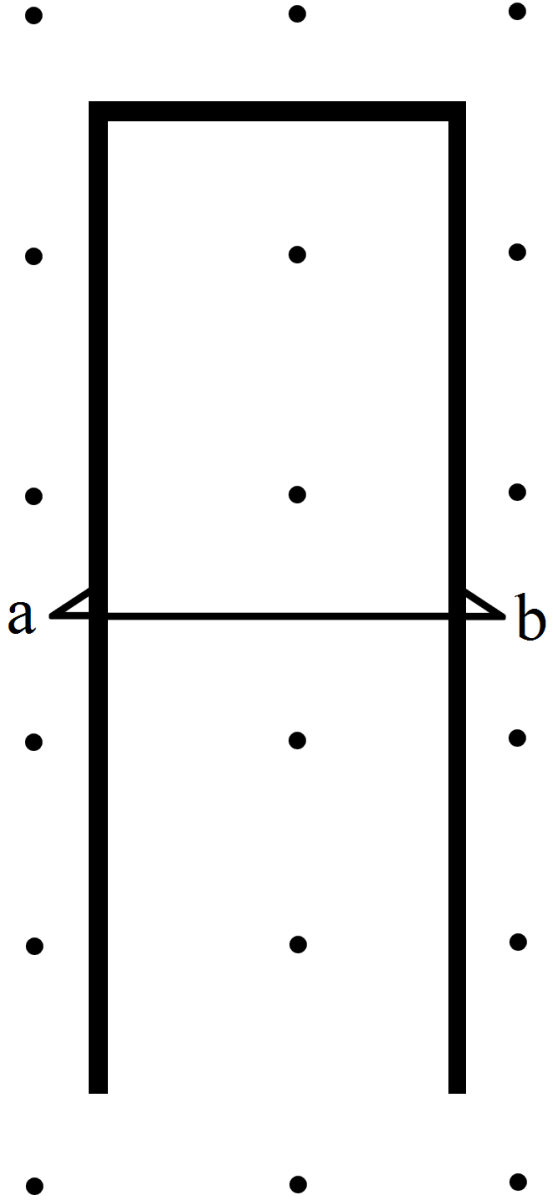

A conducting wire ab of length l, resistance r and mass m starts sliding at t = 0 down a smooth, vertical, thick pair of connected rails as shown in figure. A uniform magnetic field B exists in the space in a direction perpendicular to the plane of the rails.
  1. Write the induced emf in the loop at an instant t when the speed of the wire is v.
  2. What would be the magnitude and direction of the induced current in the wire?
  3. Find the downward acceleration of the wire at this instant.
  4. After sufficient time, the wire starts moving with a constant velocity. Find this velocity vm.
  5. Find the velocity of the wire as a function of time.
  6. Find the displacement of the wire as a function of time.
  7. Show that the rate of heat developed in the wire is equal to the rate at which the gravitational potential energy is decreased after steady state is reached.

→
The magnetic field in the cylindrical region shown in figure increases at a constant rate of 20.0mT/s. Each side of the square loop abcd and defa has a length of 1.00cm and a resistance of $4.00\Omega.$ Find the current (magnitude and sense) in the wire ad if:

  1. The switch S1 is closed but S2 is open.
  2. S1 is open but S2 ia closed.
  3. Both S1 and S2 are open.
  4. Both S1 and S2 are closed.

→
A lady uses +1.5D glasses to have normal vision from 25cm onwards. She uses a 20D lens as a simple microscope to see an object. Find the maximum magnifying power if she uses then microscope
  1. Together with her glass
  2. Without the glass. Do the answers suggest that an object can be more clearly seen through a microscope without using the correcting glasses?
→

Obtain the maximum kinetic energy of $\beta$-particles, and the radiation frequencies of $\gamma$ decays in the decay scheme shown in Fig. 13.6. You are given that:

$\text{m}(^{198}\text{Au})=197.968233\text{ u}$

$\text{m}(^{198}\text{Hg})=197.9667602\text{ u}$

→
What is meant by rectification? Draw a diagram of a half wave rectifier electric circuit. Write a brief description of its working. Draw the waveforms of input voltage and output voltage for this rectifier circuit.
→
A parallel beam of white light is incident normally on a water film 1.0 × 10-4cm thick. Find the wavelength in the visible range (400nm - 700nm) which are strongly transmitted by the film. Refractive index of water = 1.33.
→
Use (i) the Ampere's law for H and (ii) continuity of lines of B, to conclude that inside a bar magnet, (a) lines of H run from the N pole to S pole, while (b) lines of B must run from the S pole to N pole.
→

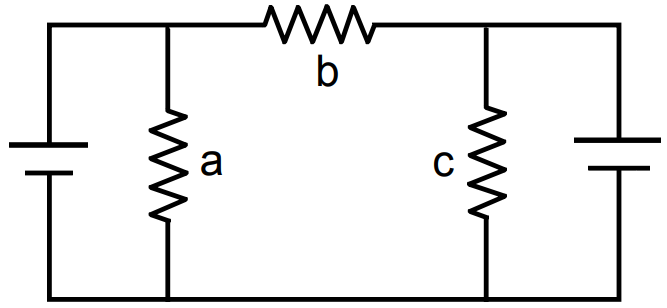

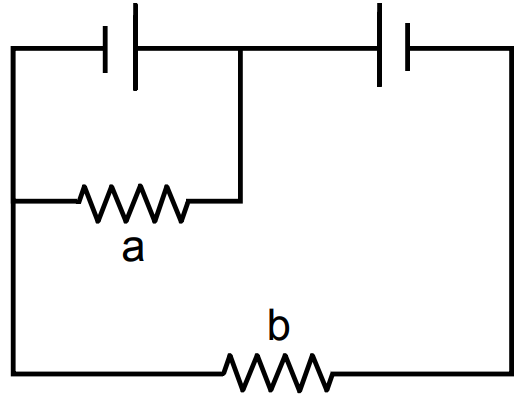

Each of the resistors shown in figure. has a resistance of $10\Omega$ and each of the batteries has an emf of 10V. Find the currents through the resistors a and b in the two circuits.


→
