Question
State Kirchhoff's rules. Explain briefly how these rules are justified.
✓
Answer
Junction rule: At any junction, the sum of the currents entering the junction is equal to the sum of currents leaving the junction.
Alternate Answer
$\sum\text{i} = 0 $
Justification: Conservation of charge.
Loop rule: The Algebraic sum of changes in the potential around any closed loop involving resistors and cells in the loop is zero.
Alternate Answer
$\sumΔ \text{V} =0,$ where Δ V is the changes in potential.
Justification: Conservation of energy.
Alternate Answer
$\sum\text{i} = 0 $
Justification: Conservation of charge.
Loop rule: The Algebraic sum of changes in the potential around any closed loop involving resistors and cells in the loop is zero.
Alternate Answer
$\sumΔ \text{V} =0,$ where Δ V is the changes in potential.
Justification: Conservation of energy.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A block of mass 1kg is placed at the point A of a rough track shown in figure. If slightly pushed towards right, it stops at the point B of the track. Calculate the work done by the frictional force on the block during its transit from A to B.
The atmospheric temperature in the cities on sea-coast change very little. Explain.
Find the thermo-emf developed in a copper-silver thermocouple when the junctions are kept at $0^\circ$C and $40^\circ$C. Use the data in table.
|
|||||||||||||||||||||||||||
|
State and explain Lenz's law
In a potentiometer arrangement, a cell of emf 1.25 V gives a balance point at 35.0 cm length of the wire. If the cell is replaced by another cell and the balance point shifts to 63.0 cm, what is the emf of the second cell?
If three identical prisms are combined, is it possible to pass a beam that emerges undeviated? Undispersed?
Draw a diagram to show the standing pressure wave and standing displacement wave for the 3rd overtone mode of vibration of an open organ pipe.

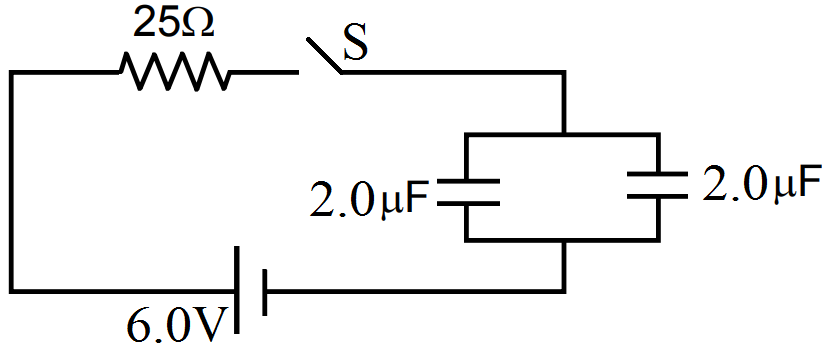

Find the charge on each of the capacitors 0.20ms after the switch S is closed in the figure.
