Question
Suppose the space between the two inner shells of the previous problem is filled with a dielectric of dielectric coastant K. Find the capacitance of the system between A and B.
✓
Answer
Here we should consider two spherical capacitor of capacitance cab and cbc in series
$\text{Cab}=\frac{4\pi\in_0\text{abk}}{(\text{b}-\text{a})}$
$\text{Cbc}=\frac{4\pi\in_0\text{bc}}{(\text{c}-\text{b})}$
$\frac{1}{\text{C}}=\frac{1}{\text{Cab}}+\frac{1}{\text{Cbc}}$
$=\frac{(\text{b}-\text{a})}{4\pi\in_0\text{abk}}+\frac{(\text{c}-\text{b})}{4\pi\in_0\text{bc}}$
$=\frac{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}{\text{k}4\pi\in_0\text{abc}}$
$\text{C}=\frac{\text{k}4\pi\in_0\text{abc}}{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Each of the capacitors shown in figure has a capacitance of $2\mu\text{F}.$ Find the equivalent capacitance of the assembly between the points A and B. Suppose, a battery of emf 60 volts is connected between A and B. Find the potential difference appearing on the individual capacitors.

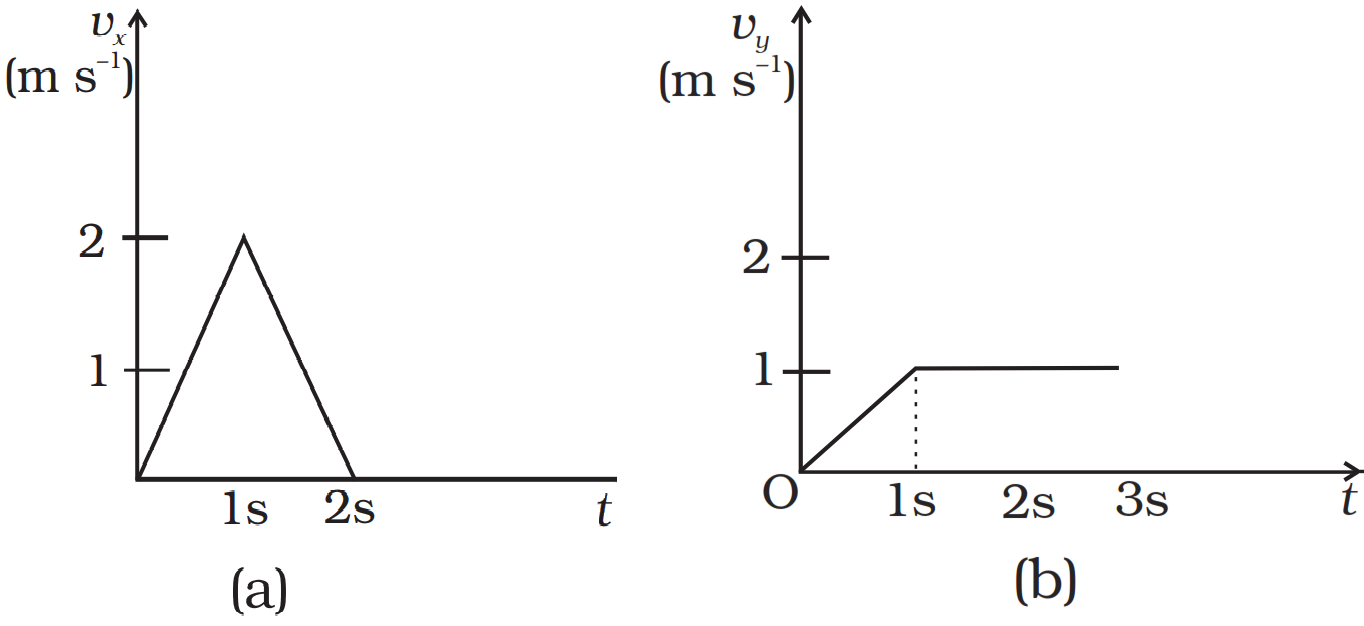

→(vx, t),and(vy, t ) diagrams for a body of unit mass. Find the force as a function of time.
Find the amount of the fluid flowing through the tube per second through venturi flow meter.
A parallel-plate capacitor having plate area 20cm2 and separation between the plates 1.00mm is connected to a battery of 12.0V. The plates are pulled apart to increase the separation to 2.0mm.
- Calculate the charge flown through the circuit during the process.
- How much energy is absorbed by the battery during the process?
- Calculate the stored energy in the electric field before and after the process.
- Using the expression for the force between the plates, find the work done by the person pulling the plates apart.
- Show and justify that no heat is produced during this transfer of charge as the separation is increased.
Two glass bulbs of equal volume are connected by a narrow tube and are filled with a gas at 0°C at a pressure of 76cm of mercury. One of the bulbs is then placed in melting ice and the other is placed in a water bath maintained at 62°C. What is the new value of the pressure inside the bulbs? The volume of the connecting tube is negligible.
A tuning fork is in unison with a sonometer wire 73cm long. If 4 beats are heard on shortening the wire by 5mm, find the frequency of the fork.
A cylinder of mass 5kg and radius 30cm and free to rotate about its axis, receives an angular impulse of 3kgm2 s-1 followed by a similar impulse after every 4 seconds. What is the angular speed of the cylinder 30s after the initial impulse? The cylinder is at rest initially.
An inductor-coil of resistance $10\Omega$ and induetanes 120mH is connected across a battery of emf 6V and Internal resistance $2\Omega.$ Find the charge which flows through the inductor in:
→- 10ms
- 20ms
- 100 ms after the connections are made.
See Fig. 4.15. A wooden block of mass $2 kg$ rests on a soft horizontal floor. When an iron cylinder of mass $25 kg$ is placed on top of the block, the floor yields steadily and the block and the cylinder together go down with an acceleration of $0.1 m s ^{-2}$. What is the action of the block on the floor (a) before and (b) after the floor yields ? Take $g=10 m s ^{-2}$. Identify the action-reaction pairs in the problem.

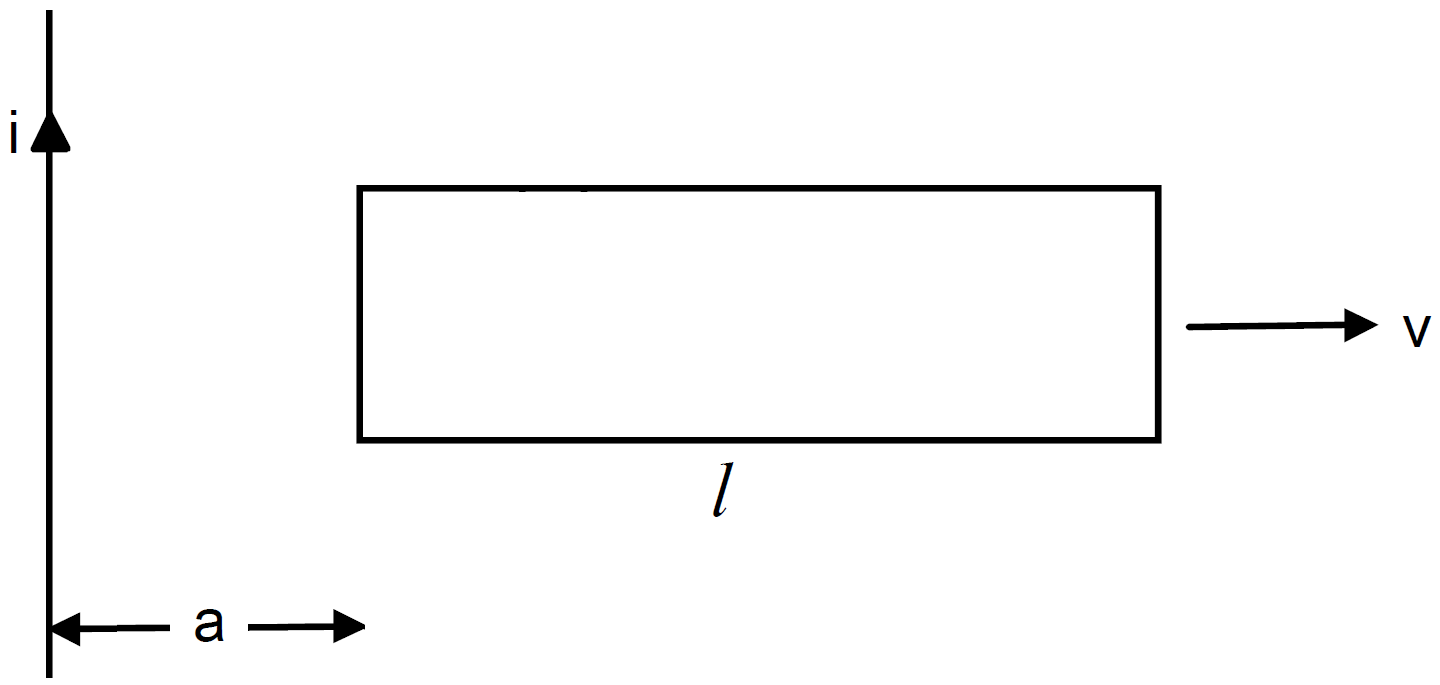

→A rectangular metallic loop of length l and width b is placed coplanarly with a long wire carrying a current i. The loop is moved perpendicular to the wire with a speed v in the plane containing the wire and the loop. Calculate the emf induced in the loop when the rear end of the loop is at a distance a from the wire. Solve by using Faraday's law for the flux through the loop and also by replacing different segments with equivalent batteries.
