Test if the following equations are dimensionally correct: 1. h= … - Vidyadip

Question

Test if the following equations are dimensionally correct:

$\text{h}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}$
$\text{u}=\sqrt{\frac{\text{P}}{\rho}}$
$\text{V}=\frac{\pi\text{Pr}^4\text{t}}{8\eta l}$
$\text{v}=\frac{1}{2\pi}\sqrt{\frac{\text{mg}l}{\text{I}}}$

where h = height, S = surface tension, $\rho$ = density, P = pressure, V = volume, $\eta$ = coefficient of viscosity, v = frequency and I = moment of inertia.

✓

Answer

$\text{h}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}$

$\text{LHS}=[\text{L}]$

Surface tension $=\text{S}=\frac{\text{F}}{\text{I}}=\frac{\text{MLT}^{-2}}{\text{L}}=[\text{MT}^{-2}]$

Density $=\rho=\frac{\text{M}}{\text{V}}=[\text{ML}^{-3}\text{T}^{0}]$

Radius $=\text{r}=[\text{L],g = [LT}^{-2}]$

$\text{RHS}=\frac{2\text{S}\cos\theta}{\rho\text{rg}}=\frac{[\text{MT}^{-2}]}{[\text{ML}^{-3}\text{T}^0][\text{L}][\text{LT}^{-2}]}=[\text{M}^0\text{L}^1\text{T}^0]=[\text{L}]$

$\text{LHS = RHS}$

So, the relation is correct

$\text{v}=\sqrt{\frac{\text{P}}{\rho}}$ where v = velocity

$\text{LHS = Dimension of v = [LT}^{-1}]$

Dimension of $\text{p}=\frac{\text{F}}{\text{A}}=[\text{ML}^{-1}\text{T}^{-2}]$

Dimension of $\rho=\frac{\text{m}}{\text{v}} = \text{[ML}^{-2}]$

$\text{RHS}=\sqrt{\frac{\text{p}}{\rho}}=\sqrt{\frac{[\text{ML}^{-1}\text{T}^{-2}]}{[\text{ML}^{-3}]}}=[\text{L}^2\text{T}^{-2}]^{\frac{1}{2}}=[\text{LT}^{-1}]$

So, the relation is correct.

$\text{V}=\frac{(\pi\text{pr}^4\text{t})}{(8\eta\text{I})}$

$\text{LHS = Dimension of V = [L}^3]$

Dimension of $\text{p}=[\text{ML}^{-1}\text{T}^{-2}],\text{r}^4=[\text{L}^4],\text{t}=[\text{T}]$

Coefficient of viscosity $=[\text{ML}^{-1}\text{T}^{-1}]$

$\text{RHS}=\frac{\pi\text{pr}^4\text{t}}{8\eta\text{I}}=\frac{[\text{ML}^{-1}\text{T}^{-2}][\text{L}^4][\text{T}]}{[\text{ML}^{-1}\text{T}^{-1}][\text{L}]}$

So, the relation is correct.

$\text{v}=\frac{1}{2\pi}\sqrt{(\text{mgI}/\text{I})}$

$\text{LHS = dimension of v = [T}^{-1}]$

$\text{RHS}=\sqrt{(\text{mgI}/\text{I})}=\sqrt{\frac{[\text{M}][\text{LT}^{-2}][\text{L}]}{[\text{ML}^2]}}=[\text{T}^{-1}]$

$\text{LHS = RHS}$

So, the relation is correct.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Introduction to Physics→Introduction to Physics — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A closed cubical box is made of perfectly insulating material and the only way for heat to enter or leave the box is through two solid cylindrical metal plugs, each of cross-sectional area $12cm^2$ and length $8cm$ fixed in the opposite walls of the box. The outer surface of one plug is kept at a temperature of $100°C$ while the outer surface of other plug is maintained at a temperature of $4°C$. The thermal conductivity of the material of the plug is $2.0W/ m-°C$. A source of energy generating $13W$ is enclosed inside the box. Find the equilibrium temperature of the inner surface of the box assuming that it is the same at all points on the inner surface.

Describe surface tension on the basis of molecular forces.

An aeroplane has to go from a point A to another point B, 500km away due 30° east of north. A wind is blowing due north at a speed of 20m/s. The air-speed of the
plane is 150m/s.

Find the direction in which the pilot should head the plane to reach the point B.
Find the time taken by the plane to go from A to B.

A box of 1.00m3 is filled with nitrogen at 1.5 atm at 300K. The box has a hole of an area 0.010 mm2. How much time is required for the pressure to reduce by 0.10atm, if the pressure outside is 1atm.

A pendulum bob of mass 80mg and carrying a charge of $2 \times 10^{-8}C$ is at rest in a uniform, horizontal electric field of $20 \mathrm{kVm}^{-1}$. Find the tension in the thread.

Can $\text{L}_\alpha$ X-ray of one material have shorter wavelength than $\text{K}_\alpha$ X-ray of another?

The track shown in figure is frictionless. The block B of mass $2m$ is lying at rest and the block A of mass m is pushed along the track with some speed. The collision between A and B is perfectly elastic. With what velocity should the block A be started to get the sleeping man awakened?

Two identical balls, each having a charge of $2.00 \times 10^{-7}C$ and a mass of $100g$, are suspended from a common point by two insulating strings each 50cm long. The balls are held at a separation 5.0cm apart and then released. Find,

The electric force on one of the charged balls.
The components of the resultant force on it along and perpendicular to the string.
The tension in the string.
The acceleration of one of the balls. Answers are to be obtained only for the instant just after the release.

Two trains A and B of length $400m$ each are moving on two parallel tracks with a uniform speed of $72km h^{–1}$ in the same direction, with A ahead of B. The driver of B decides to overtake A and accelerates by $1m s^{–2}$. If after $50s$, the guard of B just brushes past the driver of A, what was the original distance between them?

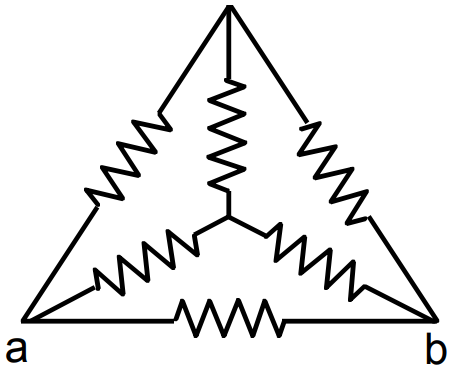

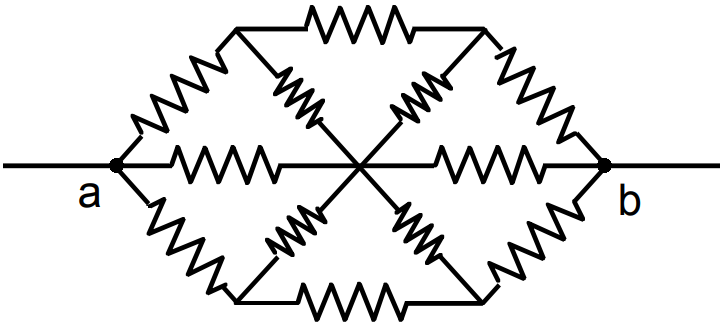

Find the equivalent resistance of the circuits shown in the figure. between the points a and b. Each resistor has resistance r.
