Work, Energy, and Power — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsWork, Energy, and Power5 Marks
Question
The bob of a pendulum is released from a horizontal position. If the length of the pendulum is $1.5m$, what is the speed with which the bob arrives at the lowermost point, given that it dissipated $5\%$ of its initial energy against air resistance?
✓

Answer

Length of the pendulum, l = 1.5m Mass of the bob = m Energy dissipated = 5% According to the law of conservation of energy, the total energy of The system remains constant. At the horizontal position: Potential energy of the bob, $E_P$ = mgl Kinetic energy of the bob, $E_K = 0$ Total energy = mgl …(i) At the lowermost point (mean position): Potential energy of the bob, $E_P = 0$ Kinetic energy of the bob, $\text{EK}= \frac{1}{2}\text{mv}^2$ Total energy $\text{E}_{\text{x}}=\Big(\frac{1}{2}\Big)\text{mv}^2\ ...(\text{ii})$ As the bob moves from the horizontal position to the lowermost point, 5% of its energy gets dissipated. The total energy at the lowermost point is equal to 95% of the total energy at the horizontal point, i.e. $\frac{1}{2}\text{mv}^2 =\frac{95}{100}\text{mgl}$
$\therefore\text{ v}=\Big(2 \times 95 \times 1.5 \times \frac{9.8 }{100}\Big)^{\frac{1}{2}}$
$= 5.28 \text{m/s}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Work, Energy, and Power→Work, Energy, and Power — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The two blocks in an Atwood machine have masses $2.0kg$ and $3.0kg$. Find the work done by gravity during the fourth second after the system is released from rest.
→
Show that the motion of the fluid filled is the U-tube is simple harmonic motion. Establish the formula for time period of the motion.
→
A sound source, fixed at the origin, is continuously emitting sound at a frequency of 660Hz. The sound travels in air at a speed of 330m/s. A listener is moving along the line x = 336m at a constant speed of 26m/s. Find the frequency of the sound as observed by the listener when he is:
  1. At y = - 140m.
  2. At y = 0.
  3. At y = 140m.
→
Reynold's number $N_R$ (a dimensionless quantity) determines the condition of laminar flow of a viscous liquid through a pipe. $N_R$​​​​​​​ is a function of the density of the liquid r, its average speed is v and the coefficient of viscosity of the liquid is h. If $N_R​​​​​​​$ is given directly proportional to d (the diameter of the pipe), show from dimensional consideration that $\text{N}_\text{R}\propto\frac{\text{d}\rho\upsilon}{\eta}$ the unit of $\eta$ in S.I. system is $kg m^{-1} s^{-1}$.
→
A block of mass $2.0kg$ moving at $2.0m/s$ collides head on with another block of equal mass kept at rest.
  1. Find the maximum possible loss in kinetic energy due to the collision.
  2. If the actual loss in kinetic energy is half of this maximum, find the coefficient of restitution.
→
What will be the energy corresponding to the first excited state of a hydrogen atom if the potential energy of the atom is taken to be 10eV when the electron is widely separated from the proton? Can we still write $\text{E}_\text{n}=\frac{\text{E}_1}{\text{n}^2}?\text{ r}_\text{n}=\text{a}_0\text{n}^2?$
→
The blades of a windmill sweep out a circle of area A.
  1. If the wind flows at a velocity v perpendicular to the circle, what is the mass of the air passing through it in time t?
  2. What is the kinetic energy of the air?
  3. Assume that the windmill converts 25% of the wind's energy into electrical energy, and that $A = 30m^2, v = 36km/ h$ and the density of the air is $1.2kg/ m^{-3}$. What is the electrical power produced?
→
A block of mass $2.0kg$ kept at rest on an inclined plane of inclination $37°$ is pulled up the plane by applying a constant force of $20N$ parallel to the incline. The force acts for one second.
  1. Show that the work done by the applied force does not exceed $40J$.
  2. Find the work done by the force of gravity in that one second if the work done by the applied force is 40J.
  3. Find the kinetic energy of the block at the instant the force ceases to act. Take $g = 10m/s^2$.
→
Write Kelvin-Planck and Clausius statements for second law of thermodynamics. Define coefficient of efficiency and coefficient of performance. Show the heat flow in case of an engine and refrigerator using schematic diagrams.
→

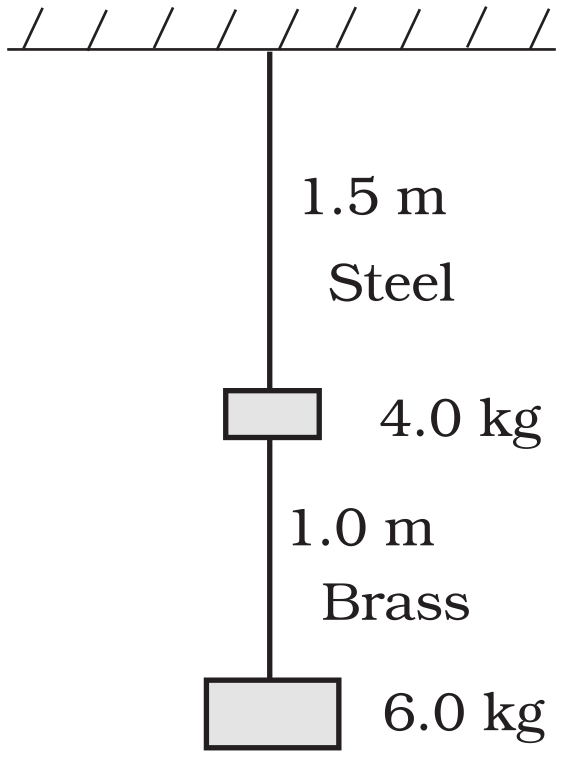

Two wires of diameter $0.25cm$, one made of steel and the other made of brass are loaded as shown in Fig. The unloaded length of steel wire is $1.5m$ and that of brass wire is $1.0m$. Compute the elongations of the steel and the brass wires.
→
