Question
The conductivity of an intrinsic samiconductor depends on temperature as $\sigma=\sigma_0\text{ e}^{\frac{-\Delta\text{E}}{2\text{kT}}}$ where $\sigma_0$ is a constant. Find the temperature at which the conductivity pf an intrinsic germanium semiconductor will be double of its value at T = 300K. Assume that the gap for germanium is 0.650eV and remains constant as the temperature is increased.
✓

Answer

$\sigma=\sigma_0\text{e}^{\frac{-\Delta\text{E}}{2\text{KT}}}$
$\Delta\text{E}=0.650\text{eV},\text{T}=300\text{K}$
According to question, $\text{K}=8.62\times10^{-5}\text{eV}$
$\sigma_0\text{e}^{\frac{-\Delta\text{E}}{2\text{KT}}}=2\times\sigma_0\text{e}^{\frac{-\Delta\text{E}}{2\times\text{K}\times300}}$
$\Rightarrow\text{e}^{\frac{-0.65}{2\times8.62\times10^{-5}\times\text{T}}}=6.96561\times10^{-5}$
Taking in on both sides,
We get, $\frac{-0.65}{2\times8.62\times10^{-5}\times\text{T}'}=-11.874525$
$\rightarrow\frac{1}{\text{T}'}=\frac{11.574525\times2\times8.62\times10^{-5}}{0.65}$
$\Rightarrow\text{T}'=317.51178=318\text{K}.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Semiconductor Electronic: Material, Devices And Simple Circuits→Semiconductor Electronic: Material, Devices And Simple Circuits — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Consider a non-conducting plate of radius r and mass m that has a charge q distributed uniformly over it. The plate is rotated about its axis with an angular speed $\omega.$ Show that the magnetic moment $\mu$ and the angular momentum of the plate are related as $\mu=\frac{\text{q}}{2\text{m}}\text{l}.$
→
Two vessels A and B of equal volume $V_0$ are connected by a narrow tube that can be closed by a valve. The vessels are fitted with pistons that can be moved to change the volumes. Initially, the valve is open and the vessels contain an ideal gas $\Big(\frac{\text{C}_\text{P}}{\text{C}_\text{V}}=\gamma\Big)$ at atmospheric pressure $p_0$ and atmospheric temperature $T_0$. The walls of vessel A are diathermic and those of B are adiabatic. The valve is now closed and the pistons are slowly pulled out to increase the volumes of the vessels to double the original value.
  1. Find the temperatures and pressures in the two vessels.
  2. The valve is now opened for sufficient time so that the gases acquire a common temperature and pressure. Find the new values of the temperature and pressure.
→
Two car garages have a common gate which needs to open automatically when a car enters either of the garages or cars enter both. Devise a circuit that resembles this situation using diodes for this situation.
→
Prove that the value of energy stored in a capacitor is $\frac{1 Q^2}{2 C}$ and the energy density of the electric field is $u=\frac{1}{2} \epsilon_0 E ^2$.
→
Calculate potential energy of a point charge -q placed along the axis due to a charge +Q uniformly distributed along a ring of radius R. Sketch P.E. as a function of axial distance z from the centre of the ring. Looking at graph, can you see what would happen if -q is displaced slightly from the centre of the ring (along the axis)?
→

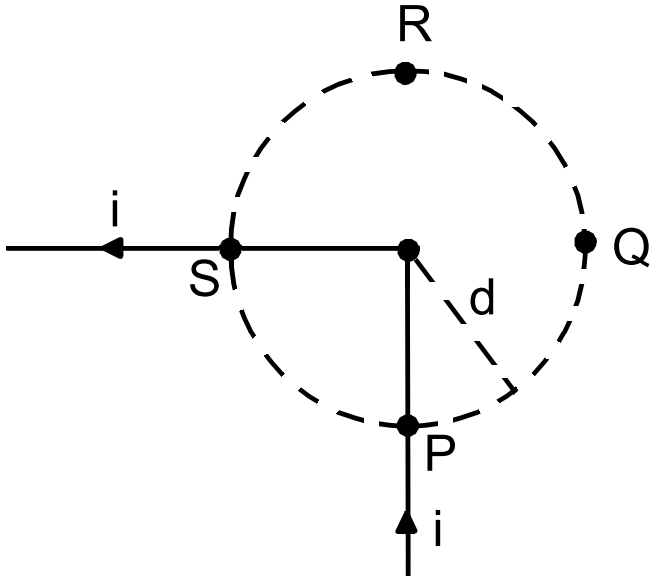

Figure shows a long wire bent at the middle to form a right angle. Show that the magnitudes of the magnetic fields at the points P, Q, R and S are equal and find this magnitude.
→
