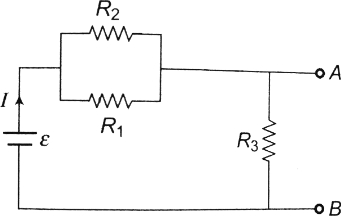

Q: The circuit shown in the figure consists of a battery of $emf$ $\varepsilon = 10 \,V$ ; a capacitor of capacitance $C = 1.0$ $ \mu F$ and three resistor of values $R_1 = 2$ $\Omega$ , $R_2 = 2$ $\Omega$ and $R_3 = 1$ $\Omega$ . Initially the capacitor is completely uncharged and the switch $S$ is open. The switch $S$ is closed at $t = 0.$

d At $t=,$ the equivalent circuit is $I=\frac{\varepsilon}{R_{3}+\frac{R_{1} R_{2}}{R_{1}+R_{2}}}=\frac{10}{1+\frac{(2)(2)}{2+2}}=\frac{10}{1+1}=5 A$ Also, $I_{R_{1}} R_{1}=I_{R_{2}} R_{2} \Rightarrow \frac{I_{R_{1}}}{I_{R_{2}}}=\frac{R_{2}}{R_{1}}$

SECTION - A [PHYSICS MCQ]

GSEB - English Medium

The circuit shown in the figure consists of a battery of $emf$ $\varepsilon = 10 \,V$ ; a capacitor of capacitance $C = 1.0$ $ \mu F$ and three resistor of values $R_1 = 2$ $\Omega$ , $R_2 = 2$ $\Omega$ and $R_3 = 1$ $\Omega$ . Initially the capacitor is completely uncharged and the switch $S$ is open. The switch $S$ is closed at $t = 0.$

AThe current through resistor $R_3 $ at the moment the switch closed is zero.
BThe current through resistor $R_3$ a long time after the switch closed is $5A.$
CThe ratio of current through $ R_1$ and $R_2$ is always constant.
D
all of the above

Diffcult

STD 11 Science
JEE
STD 12 - 3. current electricity
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App
