Question

The earth’s surface has a negative surface charge density of 10^-9 Cm^-2. The potential difference of 400 kV between the top of the atmosphere and the surface results (due to the low conductivity of the lower atmosphere) in a current of only 1800 A over the entire globe. If there were no mechanism of sustaining atmospheric electric field, how much time (roughly) would be required to neutralise the earth’s surface? (This never happens in practice because there is a mechanism to replenish electric charges, namely the continual thunderstorms and lightning in different parts of the globe). (Radius of earth = 6.37 × 10⁶ m.)

✓

Answer

Surface charge density of the earth, $\sigma=10^{-9}\ \text{C m}^{-2}$
Current over the entire globe, $\text{I}=1800\ \text{A}$
Radius of the earth, $\text{r}=6.37\times10^6\ \text{m}$
Surface area of the earth,
$\text{A}=4\pi\text{r}^2$
$=4\pi\times(6.37\times10^6)^2$
$=5.09\times10^{14}\ \text{m}^2$
Charge on the earth surface,
$\text{q}=\sigma\times\text{A}$
$=10^{-9}\times5.09\times10^{14}$
$=5.09\times10^{5}\ \text{C}$
Time taken to neutralize the earth's surface = t
$\text{Current},\ \text{I}=\frac{\text{q}}{\text{t}}$
$\text{t}=\frac{\text{q}}{\text{I}}$
$=\frac{5.09\times10^5}{1800}=282.77\text{s}$
Therefore, the time taken to neutralize the earth's surface is 282.77s.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Current Electricity→Current Electricity — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

Find the equivalent resistance between the terminals A and B in the network shown in Figure. Given each resistor R is $10 \Omega$.

Find the energy liberated in the reaction:
²²³Ra → ²⁰⁹Pb + ¹⁴C.
The atomic masses needed are as follows.

²²³Ra	²⁰⁹Pb	¹⁴C
22.018u	208.981u	14.003u

A short magnet is moved along the axis of a conducting loop. Show that the loop repels the magnet if the magnet is approaching the loop and attracts the magnet if it is going away from the loop.

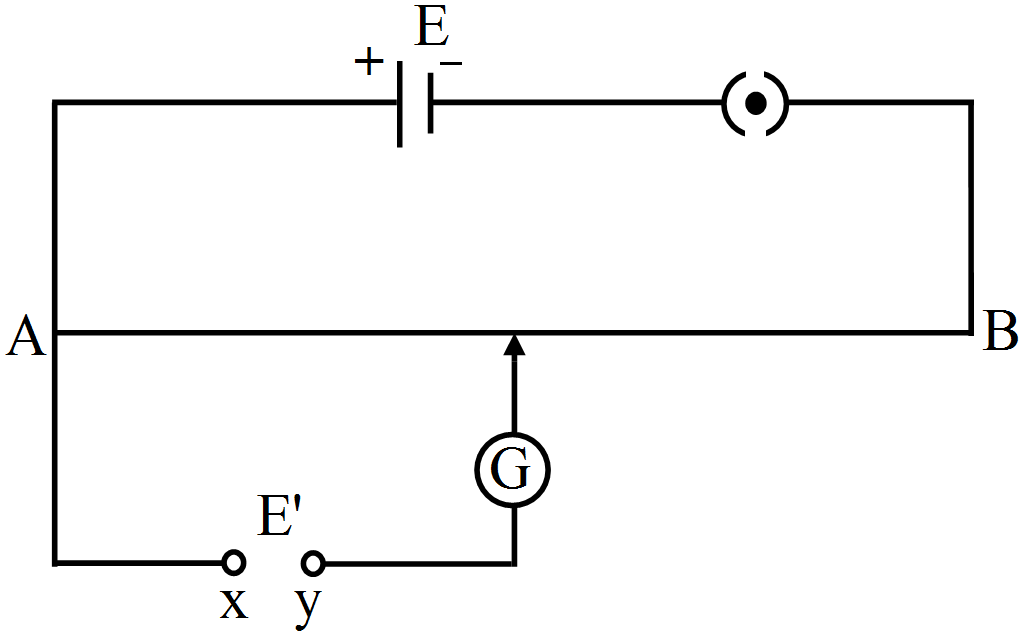

For the potentiometer circuit shown in the given figure, points X and Y represent the two terminals of an unknown emf E'. A student observed that when the jockey is moved from the end A to the end B of the potentiometer wire, the deflection in the galvanometer remains in the same direction.
