Photoelectric Effect and WaveParticle Duality — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsPhotoelectric Effect and WaveParticle Duality5 Marks
Question
The electric field associated with a light wave is given by $\text{E}=\text{E}_0\sin[(1.57\times10^7\text{m}^{-1})(\text{x}-{\text{ct}})].$ Find the stopping potential when this light is used in an experiment on photoelectric effect with the emitter having work function 1.9eV.
✓

Answer

$\text{E}=\text{E}_0\sin[(1.57\times10^{7}\text{m}^{-1})(\text{x}-\text{ct})]$$\text{w}=1.57\times10^7\times\text{c}$
$\Rightarrow\text{f}=\frac{1.57\times10^{7}\times3\times10^{8}}{\text{2}\pi}\text{Hz}$
$\text{w}_0=1.9\text{ev}$
Now $eV_0 = hv - W_0$
$=4.14\times10^{-15}\times\frac{1.57\times3\times10^{15}}{2\pi}-1.9\text{ev}$
$=3.105-1.9=1.205\text{ev}$
So, $\text{v}_0=\frac{1.205\times1.6\times10^{-19}}{1.6\times10^{-19}}=1.205\text{ev.}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

How does the sign of the phase angle $\phi$, by which the supply voltage leads the current in an LCR series circuit, change as the supply frequency is gradually increased from very low to very high values.
→
What is meant by forward bias and reverse bias of p-n junction diode? Draw experimental electrical circuit diagram to study V-I characteristic in forward bias and reverse bias of p-n junction diode. Draw forward bias and reverse bias V-I characteristic curves of p-n junction diode and briefly explain the following :
(i) Threshold or cut-in voltage
(ii) Breakdown voltage.
→
A point source emitting alpha particles is placed at a distance of 1m from a counter which records any alpha particle falling on its $1cm^2$ window. If the source contains $6.0 \times 10^{16}$ active nuclei and the counter records a rate of 50000 counts/ second, find the decay constant. Assume that the source emits alpha particles uniformly in all directions and the alpha particles fall nearly normally on the window.
→
In the LCR circuit shown in Fig, the ac driving voltage is $\text{v}=\text{v}_\text{m}\sin\omega\text{t}$.
  1. Write down the equation of motion for q(t).
  2. At $t = t_0$, the voltage source stops and R is short circuited. Now write down how much energy is stored in each of L and C.
  3. Describe subsequent motion of charges
→

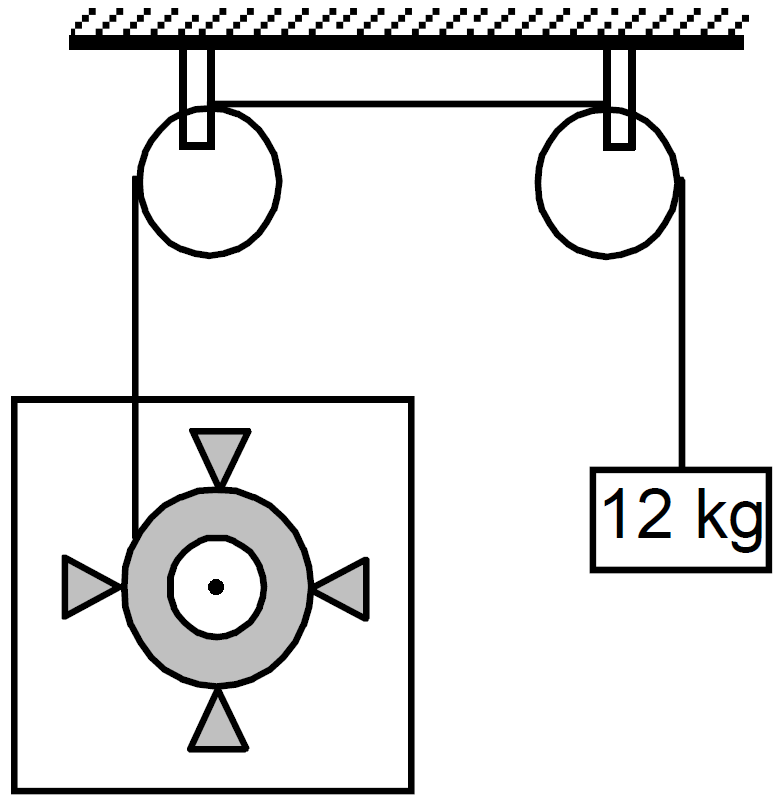

Figure. shows a paddle wheel coupled to a mass of 12kg through fixed frictionless pulleys. The paddle is immersed in a liquid of heat capacity $4200JK^{-1}$ kept in an adiabatic container. Consider a time interval in which the 12kg block falls slowly through 70cm.
