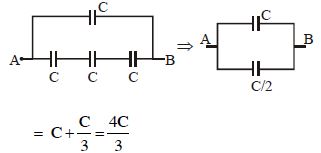

The equivalent capacitance between $A$ and $B$ is
- A$\frac{C}{4}$
- B$\frac{3C}{4}$
- C$\frac{C}{3}$
- ✓$\frac{4C}{3}$
✓
Answer
Correct option: D.
$\frac{4C}{3}$
