MCQ
The equivalent resistance between $A$ and $B$ is:
- A$18 \Omega$
- B$25 \Omega$
- C$27 \Omega$
- ✓$19 \Omega$
✓
Answer
Correct option: D.
$19 \Omega$
d

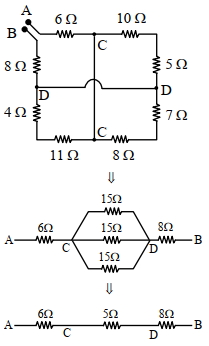

$\Rightarrow \mathrm{R}_{\mathrm{eq}}=6 \Omega+5 \Omega+8 \Omega=19 \Omega$
$\Rightarrow \mathrm{R}_{\mathrm{eq}}=6 \Omega+5 \Omega+8 \Omega=19 \Omega$
