The equivalent resistance between points $A$ and $B$ in the given network is ............ $\Omega$
- A$65$
- B$20$
- ✓$5$
- D$2$
✓
Answer
Correct option: C.
$5$
c

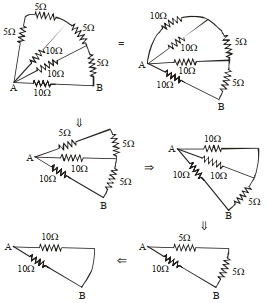

$R _{ AB }=5 \,\Omega$
$R _{ AB }=5 \,\Omega$
