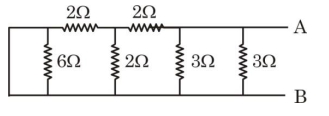

The equivalent resistance between the points $A$ and $B$ is :-
Medium
Download our app for free and get started
$R_{A B}=\frac{9 \times 12}{9+12}+7$
$=\frac{85}{7}$
