MCQ

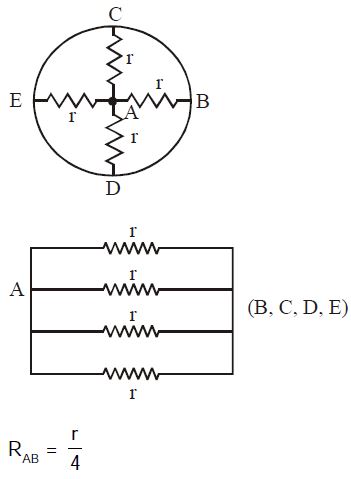

The equivalent resistance betweent point $A$ and $B$
- A$4r$
- B$2r$
- C$r$
- ✓$\frac{r}{4}$
✓
Answer
Correct option: D.
$\frac{r}{4}$
