14. waves and sound — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics14. waves and sound1 Mark
MCQ
The frequency of echo will be $.......Hz$ if the train blowing a whistle of frequency $320\,Hz$ is moving with a velocity of $36\,km / h$ towards a hill from which an echo is heard by the train driver. Velocity of sound in air is $330\,m / s$.
  • A
    $320$
  • ✓
    $340$
  • C
    $360$
  • D
    $380$
✓

Answer

Correct option: B.
$340$
b
The hill will be a secondary source.

$f _{1}=$ frequency of the car w.r.t. the hill

$f_{1}=\left(\frac{v}{v-v_{ s }}\right) f=\left(\frac{330}{320}\right) \times 320=330 Hz$

$f _{2}=$ Frequency of the sound reflected by hill w.r.t. the car $(echo)$

$f_{2}=\left(\frac{v+v_{0}}{v}\right) f_{1}=\frac{(330+10)}{330} \times 330=340\,Hz$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Heat is associated with:
→
A train starts from rest from a station with acceleration $0.2 \,m / s ^2$ on a straight track and then comes to rest after attaining maximum speed on another station due to retardation $0.4 \,m / s ^2$. If total time spent is half an hour, then distance between two stations is [Neglect length of train]
→
A transverse wave is passing through a string shown in figure. Mass density of the string is $1 \ kg/m^3$ and cross section area of string is $0.01\ m^2.$ Equation of wave in string is $y = 2sin (20t - 10x).$ The hanging mass is (in $kg$):-
→

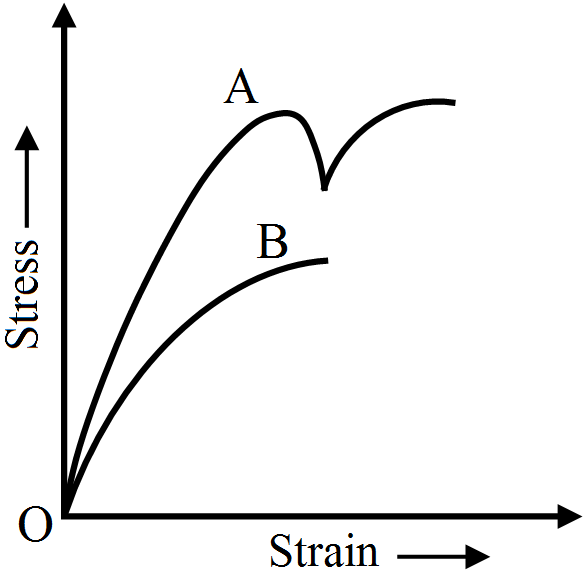

Stress-strain curves for the material $A$ and $B$ are shown below: Then,
→
