11. thermodynamics — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics11. thermodynamics1 Mark
MCQ
An ideal monoatomic gas expands to twice its volume. If the process is isothermal, the magnitude of work done by the gas is $W_i$. If the process is adiabatic, the magnitude of work done by the gas is $W_a$. Which of the following is true?
  • A
    $W_i=W_a > 0$
  • ✓
    $W_i > W_{a} > 0$
  • C
    $W_i > W_{a}=0$
  • D
    $W_{a} > W_i=0$
✓

Answer

Correct option: B.
$W_i > W_{a} > 0$
b
(b)

Indicator diagrams for isothermal and adiabatic processes are as shown below.

In above diagram, $A B$ is isothermal process and $A C$ is adiabatic process.

Work done $=$ Area under $p \cdot V$ graph So, $\quad W_{A B} > W_{A C}$ Also, gas expands, so work done is positive.

$\Rightarrow \quad W_i > W_a > 0$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 11. thermodynamics→11. thermodynamics — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The bob $A$ of simple pendulum is released when the string makes an angle of $45^o$ with the vertical. It hits another bob $B$ of the same material and same mass kept at rest on the table. If the collision is elastic, then
→
On a clear sunny day, an object at temperature $T$  is placed on the top of a high mountain. An identical object at the same temperature is placed at the foot of mountain. If both the objects are exposed to sun-rays for two hours in an identical manner, the object at the top of the mountain will register a temperature
→
$Assertion :$ Sound waves cannot travel in vacuum but light can travel in vacuum.
$Reason :$ Sound waves are longitudinal waves and they cannot be polarised but electromagentic waves are transverse and they can be polarised.
→
A spherical ball is dropped in a long column of a highly viscous liquid. The curve in the graph shown, which represents the speed of the ball $(v)$ as a function of time $(t)$ is
→
A couple produces
→
$A$ uniform chain of length $2L$ is hanging in equilibrium position, if end $B$ is given a slightly downward displacement the imbalance causes an acceleration. Here pulley is small and smooth & string is inextensible The velocity $v$ of the string when it slips out of the pulley (height of pulley from floor $> 2L$)
→
Given in the figure are two blocks $A$ and $B$ of weight $20\ N$ and $100\ N,$ respectively. These are being pressed against a wall by a force $F$ as shown. If the coefficient of friction between the blocks is $0.1$ and between block $B$ and the wall is $0.15$, the frictional force applied by the wall on block $B$ is ........... $N$
→
If $7\, gm N _{2}$ is mixed with $20\, gm$ $Ar$, there $C _{ p } / C _{ v }$ of mixture will be
→
Ratio between maximum range and square of time of flight in projectile motion is
→

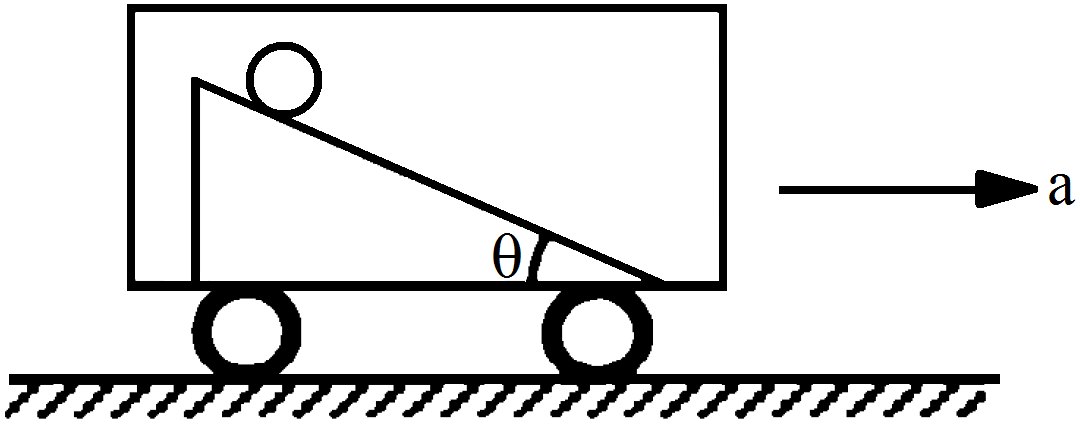

Figure shows a smooth inclined plane fixed in a car accelerating on a horizontal road. The angle of incline 0 is related to the acceleration a of the car as a = g tan°. If the sphere is set in pure rolling on the incline:
→
