Question
The given graph shows the variation of charge q versus potential difference V for two capacitors C1 and C2. The two capacitors have same plate separation, but the plate area of C2 is double than that of C1. Which of the lines in the graph correspond to C1 and C2 and why?

✓

Answer

Line A represents C2

Line B represents C1

$\because \text{C}=\frac{\text{A}\varepsilon_{\circ}}{\text{d}}$

$\therefore \text{C}_{2}= 2\text{C}_{1}$

Also, slope of line   $\frac{\text{q}}{\text{V}}=\text{C}$

Line A, of greater slope, corresponds to C2  while line B corresponds to C1.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Explain the arrangment of Geiger-Marsden's experiment of $\alpha$-particle scattering.
→
Explain the principle of working of a meter bridge. Draw the circuit diagram for determination of an unknown resistance using it.
→
Briefly discuss different theories (or models) about light given by different scientists.
→
A wheel is making revolutions about its axis with uniform angular acceleration. Starting from rest, it reaches 100rev/sec in 4 seconds. Find the angular acceleration. Find the angle rotated during these four seconds.
→
An electroplating unit plates 3.0g of silver on a brass plate in 3.0 minutes. Find the current used by the unit. The electrochemical equivalent of silver is 1.12 × 10-6 kg C-1.
→
X-ray and visible light travel at the same speed in vacuum. Do they travel at the same speed in glass?
→
Two long straight parallel wires A and B separated by a distance d, carry equal current I flowing in same direction as shown in the figure.

  1. Find the magnetic field at a point P situated between them at a distance x from one wire.
  2. Show graphically the variation of the magnetic field with distance x for 0 < x < d.
→
A boy is standing on a platform which is free to rotate about its axis. The boy holds an open umbrella in his hand. The axis of the umbrella coincides with that of the platform. The moment of inertia of ''the platform plus the boy system'' is 3.0 × 10-3kg-m2 and that of the umbrella is 2.0 × 103kg-m2. The boy starts spinning the umbrella about the axis at an angular speed of 2.0rev/s with respect to himself. Find the angular velocity imparted to the platform.
→

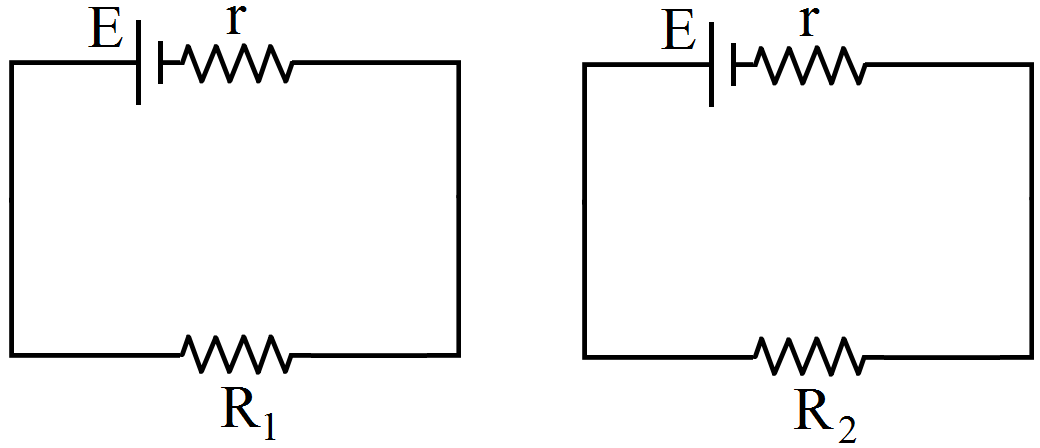

Two unequal resistances R1 and R2 are connected across two identical batteries of emf $\varepsilon$ and internal resistance r. Can the thermal energies developed in R1 and R2 be equal in a given time. If yes, what will be the condition?

→
