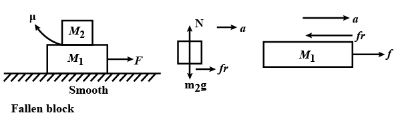

The maximum value of $F$ which can be applied on the system shown in figure so that both blocks move together with same acceleration is ..........
Difficult
Download our app for free and get started
(d)
Let both blocks move together with acceleration a. making $FBD$ of $m-2$ block for vertical balance
$M=M_2\,g$
$\Rightarrow fr =\mu M _2\,g$
$\Rightarrow a =\frac{ fr }{ M _2}=\mu g \ldots \ldots .(1)$
making FBD of second block
$F-f r=M_1 a$
$F-\mu m_2 g=M_1(\mu g )$
$\Rightarrow F=\mu\left[M_1+M_2\right]\,g$
