Question
The position, velocity and acceleration of a particle executing simple harmonic motion are found to have magnitudes 2cm, 1m/s and 10m/s2 at a certain instant. Find the amplitude and the time period of the motion.
✓
Answer
Given that, at a particular instant, X = 2cm = 0.02m V = 1m/sec A = 10 m/s2 We know that $\text{a}=\omega^2\text{x}$
$\Rightarrow\omega=\sqrt{\frac{\text{a}}{\text{x}}}=\sqrt{\frac{10}{0.02}}=\sqrt{500}=10\sqrt{5}$
$\text{T}=\frac{2\pi}{\omega}=\frac{2\pi}{10\sqrt{5}}=\frac{2\times3.14}{10\times2.236}=0.28\text{ seconds.}$
Again, amplitude r is given by $\text{v}=\omega\Big(\sqrt{\text{r}^2-\text{x}^2}\Big)$$\Rightarrow\text{v}^2=\omega^2(\text{r}^2-\text{x}^2)$
$1=500(\text{r}^2-0.0004)$
$\Rightarrow\text{r}=0.0489\approx0.049\text{m}$
$\therefore\text{r}=4.9\text{cm.}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

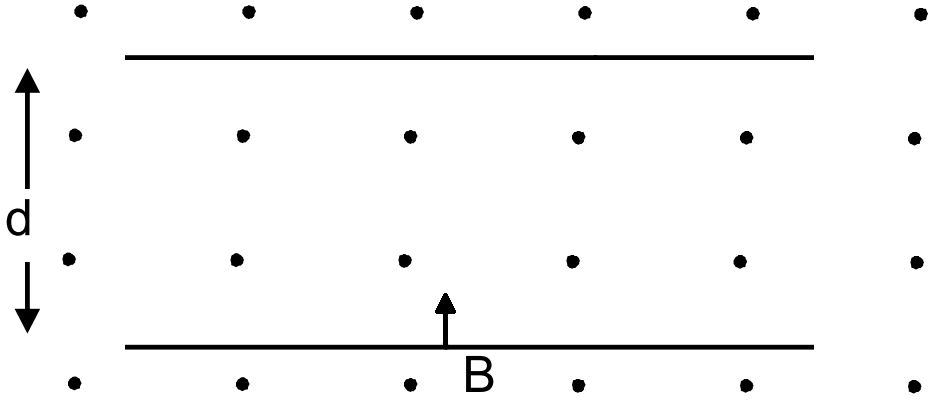

An electron is emitted with negligible speed from the negative plate of a parallel-plate capacitor charged to a potential difference V. The separation between the plates is d and a magnetic field Bexists in the space, as shown in the figure. Show that the electron will fail to strike the upper plates if $\text{d}>\Big(\frac{2\text{m}_\text{e}\text{v}}{\text{eB}^2}\Big)^{\frac{1}{2}}.$
→
