Question
The potential difference across a resistor ‘r’ carrying current ‘I’ is Ir.
  1. Now if the potential difference across ‘r’ is measured using a voltmeter of resistance ‘RV’, show that the reading of voltmeter is less than the true value
  2. Find the percentage error in measuring the potential difference by a voltmeter.
  3. At what value of RV, does the voltmeter measures the true potential difference?
✓

Answer

  1. V = lr (without voltmeter RV)

$\text{V}'=\frac{\text{lrR}_\text{V}}{\text{r}+\text{R}_\text{V}}=\frac{\text{Ir}}{1+\frac{\text{r}}{\text{R}_\text{V}}}$

$\text{V}'<\text{V}$

  1. Percentage error,

$\Big(\frac{\text{V}-\text{V}'}{\text{V}}\Big)\times100=\Big(\frac{\text{r}}{\text{r}+\text{R}_\text{V}}\Big)\times100$

  1. $\text{R}_\text{V}\xrightarrow{\ \ \ \ \ \ }\infty,\text{V}'=\text{lr}=\text{V}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Current Electricity→Current Electricity — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

  1. Draw the circuit diagram of an n-p-n transistor amplifier in common emitter configuration.
  2. Derive an expression for voltage gain of the amplifier and hence show that the output voltage is in opposite phase with the input voltage.
→

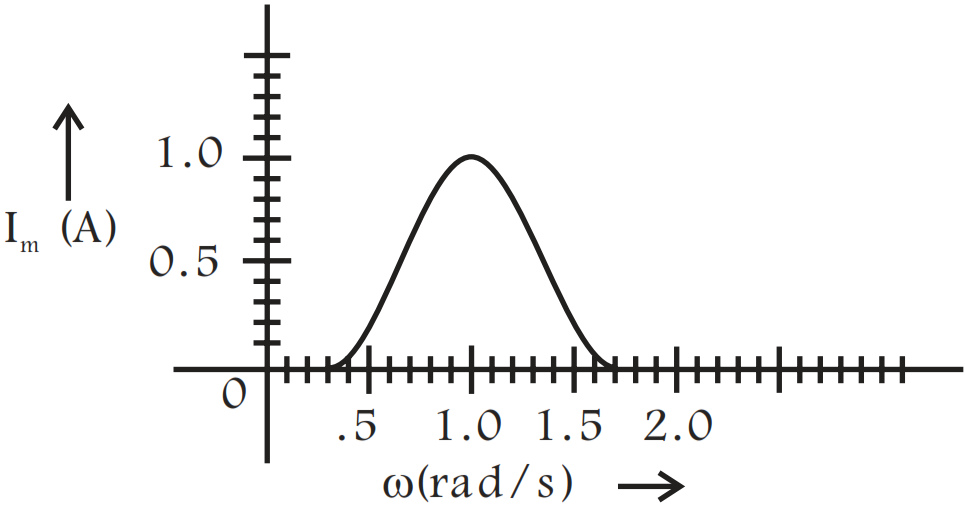

In series LCR circuit, the plot of Imax vs $\omega$ is shown in Fig. Find the bandwidth and mark in the figure.

→
