The resultant capacitance between $A$ and $B$ in the following figure is equal to.....$\mu F$
IIT 1977, Medium
Download our app for free and get started

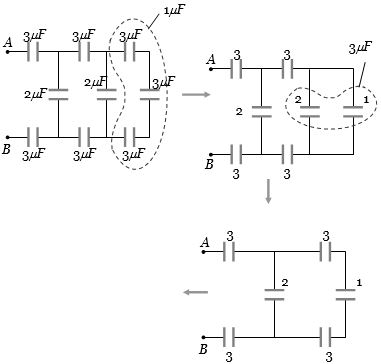

(a) The given circuit can be redrawn as follows
On further solving the network in similar manner equivalent capacitance obtained between $A$ and $B$ will be $1\, \mu F.$
