Waves — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsWaves5 Marks
Question
The transverse displacement of a string (clamped at its both ends) is given by
$\text{y}(\text{x, t})=0.06\sin\Big(\frac{2\pi}{3}\text{x}\Big)\cos(120\pi\text{ t})$
where x and y are in m and t in s. The length of the string is $1.5m$ and its mass is $3.0 \times 10^{–2}kg$.
Answer the following:
Interpret the wave as a superposition of two waves travelling in opposite directions. What is the wavelength, frequency, and speed of each wave?
✓

Answer

A wave travelling along the positive x-direction is given as: $\text{y}_1=\text{a}\sin(\omega\text{t}-\text{kx})$The wave travelling along the negative x-direction is given as:
$\text{y}_2=\text{a}\sin(\omega\text{t}-\text{kx})$ The superposition of these two waves yields: $\text{y}=\text{y}_1+\text{y}_2=\text{a}\sin(\omega\text{t}-\text{kx})-\text{a}\sin(\omega\text{t}-\text{kx})$ $=\text{a}\sin(\omega\text{t})\cos(\text{kx})-\text{a}\sin(\text{kx})\cos(\omega\text{t})-\text{a}\sin(\omega\text{t})\cos(\text{kx})-\text{a}\sin(\text{kx})\cos(\omega\text{t})$ $=-2\text{a}\sin(\text{kx})\cos(\omega\text{t})$ $=-2\text{a}\sin\Big(\frac{2\pi}{\lambda}\text{x}\Big)\cos(2\pi\text{ vt})\ \dots(\text{i})$ The transverse displacement of the string is given as: $\text{y}(\text{x, t})=0.06\sin\Big(\frac{2\pi}{3}\text{x}\Big)\cos(120\pi\text{ t})\ \dots(\text{ii})$ Comparing equations (i) and (ii), we have: $\frac{2\pi}{\lambda}=\frac{2\pi}{3}$
$\therefore$ Wavelength, $\lambda=3\text{m}$ It is given that: $120\pi=2\pi\text{v}$ Frequency, $\text{v} = 60\text{Hz}$ Wave speed, $\text{v}=\text{v}\lambda$ $=60\times3=180\text{m/s}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Waves→Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

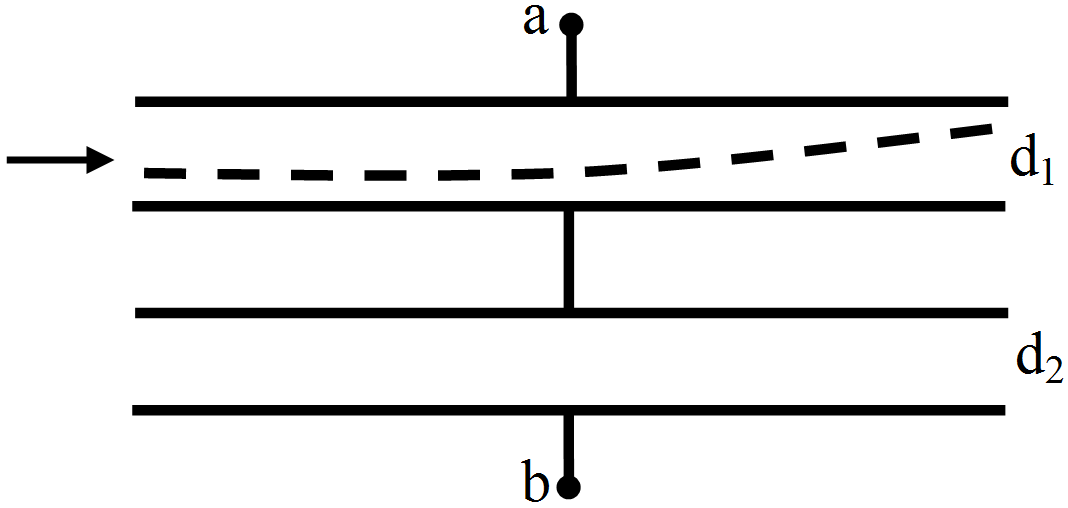

Both the capacitors shown in figure are made of square plates of edge a. The separations between the plates of the capacitors are $d_1$ and $d_2$ as shown in the figure. A potential difference V is applied between the points a and b, An electron is projected between the plates of the upper capacitor along the central line. With what minimum speed should the electron be projected so that it does not collide with any plate? Consider only the electric forces.
→
A curved surface is shown in. The portion BCD is free of friction. There are three spherical balls of identical radii and masses. Balls are released from rest one by one from A which is at a slightly greater height than C.
With the surface AB, ball 1 has large enough friction to cause rolling down without slipping, ball 2 has a small friction and ball 3 has a negligible friction.
  1. For which balls is total mechanical energy conserved?
  2. Which ball (s) can reach D?
  3. For balls which do not reach D, which of the balls can reach back A?
→
When slow neutrons are incident on a target containing $\frac{235}{92}\text{U},$ a possible fission reaction is $\frac{235}{92}\text{U}+_0^1\text{n}\rightarrow\frac{141}{56}\text{Ba}+\frac{92}{36}\text{Kr}+3_0\text{n}^1$ Estimate the amount of energy released using following data : $\text{M}\Big(\frac{235}{92}\text{U}\Big)=235.04\text{amu}$ $\Big(\text{M}\frac{92}{36}\text{Kr}\Big)=91.926\text{amu}$ $\text{M}\Big(\frac{141}{56}\text{Ba}\Big)=140.91\text{amu}$ $\text{M}=1.0087\text{ amu}$
→
Two pendulums with identical bobs and lengths are suspended from a common support such that in rest position the two bobs are in contact. One of the bobs is released after being displaced by $10°$ so that it collides elastically head-on with the other bob.
  1. Describe the motion of two bobs.
  2. Draw a graph showing variation in energy of either pendulum with time, for where T is the period of each pendulum.
→
Two identical pith balls are charged by rubbing against each other. They are suspended from a horizontal rod through two strings of length $20cm$ each, the separation between the suspension points being $5cm$. In equilibrium, the separation between the balls is $3cm$. Find the mass of each ball and the tension in the strings. The charge on each ball has a magnitude $2.0 \times 10^{-8}C$.
→
Two perfect gases at absolute temperature $T_1$ and $T_2$ are mixed. There is no loss of energy. Find the temperature of the mixture if masses of molecules are $m_1$ and $m_2$ and the number of molecules in the gases are $n_1$ and $n_2$ respectively.
→
What are beats? Prove that the number of beats produced per second by the two sound sources is equal to the difference between their frequencies.
→
Two convex lenses, each of focal length $10cm$, are placed at a separation of $15cm$ with their principal axes coinciding,
  1. Show that a light beam coming parallel to the principal axis diverges as it comes out of the lens system.
  2. Find the location of the virtual image formed by the lens system of an object placed far away.
  3. Find the focal length of the equivalent lens.
(Note that the sign of the focal length is positive although the lens system actually diverges a parallel beam incident on it).
→

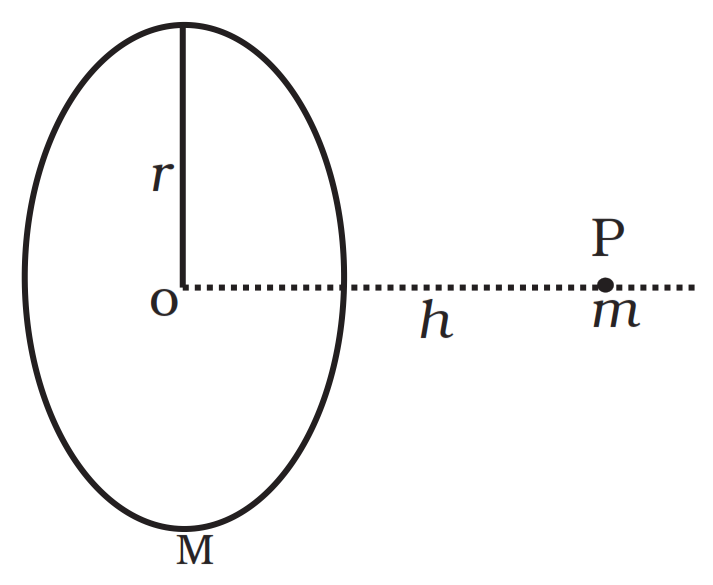

A mass m is placed at P a distance h along the normal through the centre O of a thin circular ring of mass M and radius r
