Question
Three appliances are connected in parallel to the same source which provides a voltage of 220V. A fuse connected to the source will blow if the current from the source exceeds 10A. If the three appliances are rated at 60W, 500W and 1200W at 220V, will the fuse blow?
✓

Answer

Voltage of power supply, V = 220V
Power rating of the first appliance = 60W
So, current drawn by the first appliance $=\frac{60}{220}=0.27\text{A}$
Power rating of the second appliance = 500W
So, current drawn by the second appliance $=\frac{500}{220}=2.27\text{A}$
Power rating of the first appliance = 1200W
So, current drawn by the first appliance $=\frac{1200}{220}=5.45\text{A}$
Net current drawn by all the appliances = 0.27 + 2.27 + 5.45 = 5.99A
It is given that the rating of the fuse is 10 A. It will not blow when all the appliances are used together because current capacity of the fuse is more than the value of current drawn by the device.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Answer the questions.[Phy-3M]" from Magnetic Effects of Electric Current→Magnetic Effects of Electric Current — all question types→Science STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

Is the position of a star as seen by us its true position? Justify your answer.
→
How are power and focal length of a lens related? You are provided with two lenses of focal length 20cm and 40cm respectively. Which lens will you use to obtain more convergent light?
→
A convex lens has a focal length of 10cm. At what distance from the lens should the object be placed so that it forms a real and inverted image 20cm away from the lens? What would be the size of the image formed if the object is 2cm high? With the help of a ray diagram show the formation of the image by the lens in this case.
→
Two identical wires one of nichrome and other of copper are connected in series and a current (I) is passed through them. State the change observed in the temperatures of the two
wires. Justify your answer. State the law which explains the above observation.
→

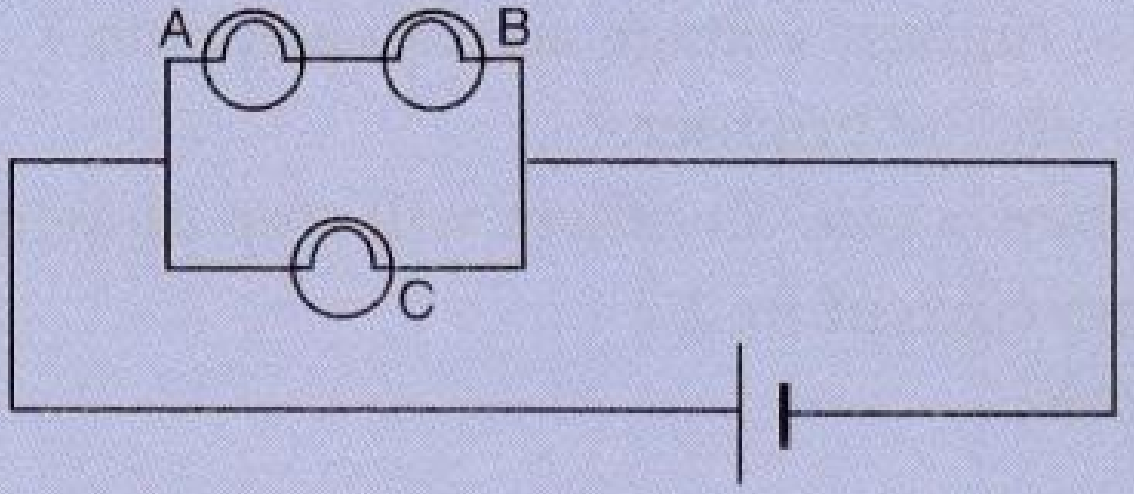

Consider the circuit given below where A, B and C are three identical light bulbs of constant resistance.
