MCQ
Three equal capacitors, each with capacitance $C$ are connected as shown in figure. Then the equivalent capacitance between $A$ and $B$ is
- A$C$
- ✓$3C$
- C$\frac{C}{3}$
- D$\frac{{3C}}{2}$
✓
Answer
Correct option: B.
$3C$
b

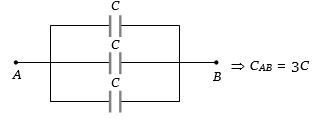

(b) The given circuit can be redrawn as follows
(b) The given circuit can be redrawn as follows
