Two coils have a mutual inductance 0.005 ,H . The current changes… - Vidyadip

MCQ

Two coils have a mutual inductance $0.005\,H$ . The current changes in the first coil The current changes in the first coil according to the equation $I = I_0 sin\,\omega t$ , where $I_0 = 10\,A$ and $\omega = 100\pi \,rad/s$ . The maximum value of $emf$ in the second coil will be

✓
$5\pi $
B
$10\pi $
C
$2.5\pi $
D
$15\pi $

✓

Answer

Correct option: A.

$5\pi $

a
As, $|\varepsilon|=M \frac{d I}{d t}$

$=M \frac{d}{d t}\left(I_{0} \sin \omega t\right)=M I_{0} \omega \cos \omega t$

$\therefore \quad \varepsilon_{\max }=0.005 \times 10 \times 100 \pi \times 1=5 \pi$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 6. Electromagnetic induction→6. Electromagnetic induction — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

What is magnetic susceptibiliy of super conductor

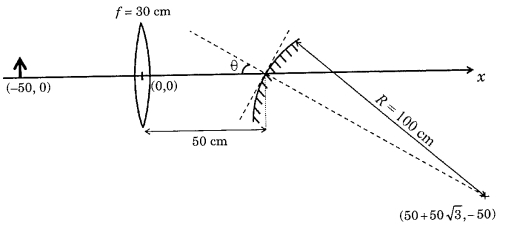

A small object is placed $50 \mathrm{~cm}$ to the left of a thin convex lens of focal length $30 \mathrm{~cm}$. A convex spherical mirror of radius of curvature $100 \mathrm{~cm}$ is placed to the right of the lens at a distance of $50 \mathrm{~cm}$. The mirror is tilted such that the axis of the mirror is at an angle $\theta=30^{\circ}$ to the axis of the lens, as shown in the figure.
