1. Electric charges and fields — Physics STD 12 Science — Question

CBSE BoardEnglish MediumSTD 12 SciencePhysics1. Electric charges and fields1 Mark
MCQ
Two concentric conducting thin spherical shells $A$ and $B$ having radii ${r_A}$ and ${r_B}$ (${r_B} > {r_A})$ are charged to ${Q_A}$ and $ - {Q_B}$$(|{Q_B}|\, > \,|{Q_A}|)$. The electrical field along a line, (passing through the centre) is
  • ✓

  • B

  • C

  • D

✓

Answer

Correct option: A.

a
(a) Inside the shell $A$, electric field $E_{in} = 0$
At the surface of shell $A$,
${E_A} = \frac{{k\,{Q_A}}}{{r_A^2}}$ $\xrightarrow{\,}$ (a fixed positive value)
Between the shell $A$ and $B$, at a distance $x$ from the common centre
$E = \frac{{k.\,{Q_A}}}{{{x^2}}}$ $\xrightarrow{\,}$  (as $x$ increases $E$ decreases)
At the surface of shell $B$,
${E_B} = \frac{{k.\,({Q_A} - {Q_B})}}{{r_B^2}}$ $\xrightarrow{\,}$ (a fixed negative value because $|QA| < |QB|$)
Outside the both shell, at a distance $x$ from the common centre
${E_{out}} = \frac{{k({Q_A} - {Q_B})}}{{x{'^2}}}$ $\xrightarrow{\,}$  (as $x$ increases negative value of Eout decreases and it becomes zero at $x = \infty$)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 1. Electric charges and fields→1. Electric charges and fields — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

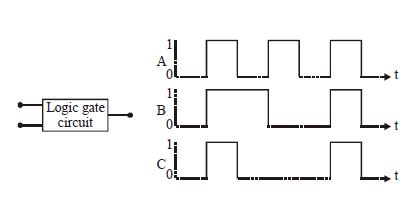

The following figure shows a logic gate circuit with two input $A$ and $B$ and output $C$.The voltage waveforms of $A, B$ and $C$ are asshown in second figure below. The logic gate is

→
