Perimeter and Area — MATHS STD 7 — Question

Gujarat BoardEnglish MediumSTD 7MATHSPerimeter and Area3 Marks
Question
Two cross roads, each of width $5 m,$ run at right angles through the centre of a rectangular park of length $70 m$ and breadth $45 m$ and parallel to its sides. Find the area of the roads. Also find the cost of constructing the roads at the rate of $₹ 105 ~per ~m^2$.
✓

Answer

Clearly, area of the cross roads is the area of shaded portion, i.e., the area of the rectangle $PQRS$ and the area of the rectangle $EFGH.$ But while doing this, the area of the square $KLMN$ is taken twice, which is to be subtracted once to get the required area.
Now, $P Q=5 \mathrm{~m}$ and $P S=45 \mathrm{~m}$
$\mathrm{EH}=5 \mathrm{~m} \text { and } \mathrm{EF}=70 \mathrm{~m}$
$\mathrm{KL}=5 \mathrm{~m} \text { and } \mathrm{KN}=5 \mathrm{~m}$
Therefore, area of the path = Area of the rectangle PQRS + area of the rectangle EFGH - Area of the square KLMN
$=\mathrm{PS} \times \mathrm{PQ}+\mathrm{EF} \times \mathrm{EH}-\mathrm{KL} \times \mathrm{KN}$
$=(45 \times 5+70 \times 5-5 \times 5) \mathrm{m}^2$
$=(225+350-25) \mathrm{m}^2=550 \mathrm{~m}^2$
Hence, cost of constructing the path $=₹ 105 \times 550=₹ 57,750$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Perimeter and Area→Perimeter and Area — all question types→MATHS STD 7 question papers→Gujarat Board STD 7 question papers→Gujarat Board question paper generator→

Similar questions

Draw an equilateral triangle one of whose sides is of length $7\ cm$.
→
A road crosses a railway line at an angle of $30^\circ $ as shown in Fig. Find the values of $a, b$ and $c.$
→

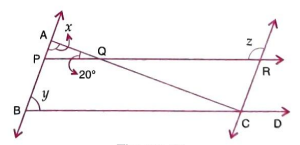

In Fig. line $C A \perp A B \|$ line $C R$ and line $P R \|$ line $B D$. Find $\angle x, \angle y$ and $\angle z$.
→
