Explanation:
$\text{V}=\frac{\text{KQ}}{\text{r}}$
V → Electric Potential

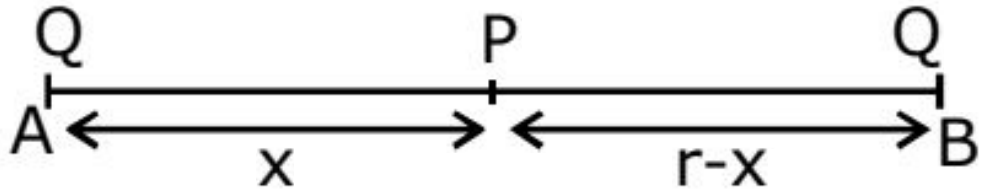

$\text{V}_\text{p}=\frac{\text{KQ}}{\text{x}}+\frac{\text{KQ}}{\text{r}-\text{x}}=\frac{\text{KQ}\text{r}}{\text{x}(\text{r}-\text{x})}$
$\frac{\text{dvp}}{\text{dx}}=\frac{-\text{kQr}(\text{r}-2\text{x})}{\big(\text{r}(\text{r}-\text{x})\big)^2}=0$
$\text{r}=2\text{x},\ \text{x}=\frac{\text{r}}{2}$

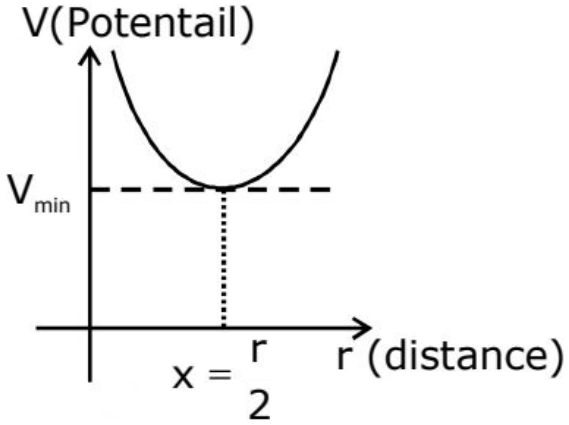

$\text{V}_\text{Pmin}=\frac{\text{KQ}}{\frac{\text{r}}{2}}+\frac{\text{KQ}}{\frac{\text{r}}{2}}=\frac{4\text{KQ}}{\text{r}}$ at $\Big(\text{x}=\frac{\text{r}}{2}\Big)$
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Two parallel wires are carrying electric currents of equal magnitude and in the same direction. They exert
|
(a) An attractive force on each other |
(b) A repulsive force on each other |
|
(c) No force on each other |
(d) A rotational torque on each other |
Given below are four logic gate symbol (figure). Those for OR, NOR and NAND are respectively
|
(a) 1, 4, 3 |
(b) 4, 1, 2 |
(c) 1, 3, 4 |
(d) 4, 2, 1 |
At noon the sun appears white because:
A nichrome wire 50 cm long and one square millimetre cross-section carries a current of 4A when connected to a 2V battery. The resistivity of nichrome wire in ohm metre is
|
(a) 1 |
(b) 4 |
(c) 3 |
(d) 2 |
A capacitor of capacitance C1 = 1mF can with stand maximum voltage V1 = 6kV (kilo-volt) and another capacitor of capacitance C2 = 3mF can withstand maximum voltage V2 = 4 kV. When the two capacitors are connected in series, the combined system can withstand a maximum voltage of
|
(a) 4kV |
(b) 6kV |
(c) 8kV |
(d) 10kV |
The S.I. unit of radioactivity is
|
(a) Roentgen |
(b) Rutherford |
(c) Curie |
(d) Becqueral |
Two circuits have mutual inductance of 0.1 H. What average e.m.f. is induced in one circuit when the current in the other circuit changes from 0 to 20 A in 0.02 s
|
(a) 240 V |
(b) 230 V |
(c) 100 V |
(d) 300 V |
The wavelength associated with an electron accelerated through a potential difference of 100 V is nearly
|
(a) 100 Å |
(b) 123 Å |
(c) 1.23 Å |
(d) 0.123 Å |
The relation between Faraday constant (F), chemical equivalent (E) and electrochemical equivalent (Z) is
|
(a) F = EZ |
(b) |
(c) |
(d) |
An α particle and a proton travel with same velocity in a magnetic field perpendicular to the direction of their velocities, find the ratio of the radii of their circular path
|
(a) 4 : 1 |
(b) 1 : 4 |
(c) 2 : 1 |
(d) 1 : 2 |
