Question

Two long strings A and B, each having linear mass density 1.2 x 10^-2kg/m, are stretched by different tensions 4.8N and 7.5N respectively and are kept parallel to each other with their left ends at x = 0. Wave pulses are produced on the strings at the left ends at t = 0 on string A and at t = 20ms on string B. When and where will the pulse on B overtake that on A?

✓

Answer

$\text{m}_\text{A}=1.2\times10^{-2}\text{kg/m},\ \text{T}_\text{A}=4.8\text{N}$

$\Rightarrow\text{v}_\text{A}=\sqrt{\frac{\text{T}}{\text{m}}}=20\text{m/s}$

$\text{m}_\text{B}=1.2\times10^{-2}\text{kg/m},\ \text{T}_\text{B}=7.5\text{N}$

$\Rightarrow\text{V}_\text{B}=\sqrt{\frac{\text{T}}{\text{m}}}=25\text{m/s}$

$\text{t}=0$ in string A

$\text{t}_1=0+20\text{ms}=20\times10^{-3}=0.02\text{sec}$

In 0.02 sec A has travelled $20\times0.02=0.4\text{mt}$

Relative speed between A and B $=25-20=5\text{m/s}$

Time taken for B for overtake A $=\frac{\text{s}}{\text{v}}=\frac{0.4}{5}=0.08\text{sec}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Wave Motion and Waves on a String→Wave Motion and Waves on a String — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A wire having linear density of 0.05 gcm^-1 is stretched between two rigid supports with a tension of 4.5 × 10⁷ dynes. It is observed that me wire resonates at a frequency of 420Hz. The next higher frequency at which the wire resonates is 490Hz. Find the length of the wire.

A person sitting on the top of a tall building is dropping balls at regular intervals of one second. Find the positions of the 3^rd, 4^th and 5^th ball when the 6^th ball is being dropped.

A steel wire of length 4.7m and cross-sectional area 3.0 × 10^-5m² stretches by the same amount as a copper wire of length 3.5m and cross-sectional area of 4.0 × 10^-5m² under a given load. What is the ratio of the Young’s modulus of steel to that of copper?

The magnetic field in a plane electromagnetic wave is given by $\text{B}=(200\mu\text{T})\sin\Big[\big(4.0\times10^{15}\text{s}^{-1}\big)\Big(\text{t}-\frac{\text{x}}{\text{c}}\Big)\Big]$ Find the maximum electric field and the average energy density corresponding to the electric field.

A particle located at x = 0 at time t = 0 starts moving along the positive x direction with a velocity v that varies as $\text{v}=\alpha\sqrt{\text{x}}.$ How do the displacement, velocity and acceleration of the particle vary with time? What is the average velocity of the particle over the first s metres of its path?

The density of water at 0^°C is 0.998g cm^-3 and at 4^°C is 1000g cm^-3.Calculate the average coefficient of volume expansion of water in the temperature range 0 to 4^°C.

A projectile is fired vertically upward from the surface of earth with a speed kv_e, where v_e. is the escape speed and k < 1. Neglecting air resistance show that the maximum height to which it will rise measured from the centre of earth is $\frac{\text{R}}{(1-\text{k}^2)},$ where R is the radius of the earth.

A metal sphere of radius R is charged to a potential V:

Find the electrostatic energy stored in the electric field within a concentric sphere of radius 2R.
Show that the electrostatic field energy stored outside the sphere of radius 2R equals that stored within it.

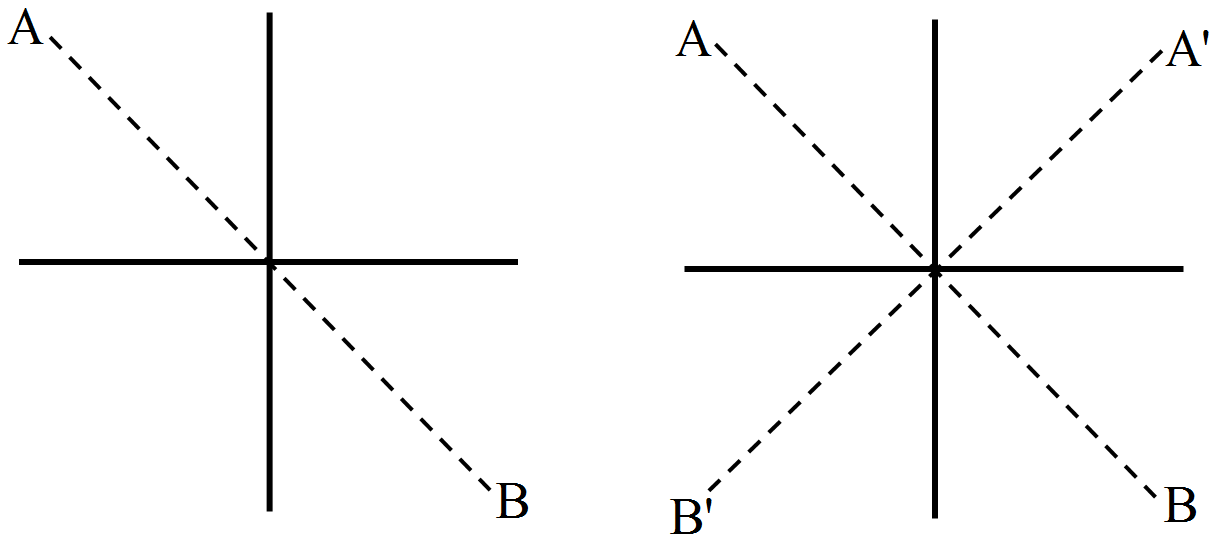

Two uniform thin identical rods, each of mass M and length L, are joined so as to form a cross as shown in Fig. What is the moment of inertia of the system about the bisector line AB?
