6. Electromagnetic induction — Physics STD 12 Science — Question

CBSE BoardEnglish MediumSTD 12 SciencePhysics6. Electromagnetic induction1 Mark
MCQ
Two parallel long straight conductors lie on a smooth surface. Two other parallel conductors rest on them at right angles so as to form a square of side a initially. $A$ uniform magnetic field $B$ exists at right angles to the plane containing the conductors. They all start moving out with a constant velocity $v$. If $r$ is the resistance per unit length of the wire the current in the circuit will be
  • ✓
    $\frac{{Bv}}{r}$
  • B
    $\frac{{Bv}}{v}$
  • C
    $Bvr$
  • D
    $Bv$
✓

Answer

Correct option: A.
$\frac{{Bv}}{r}$

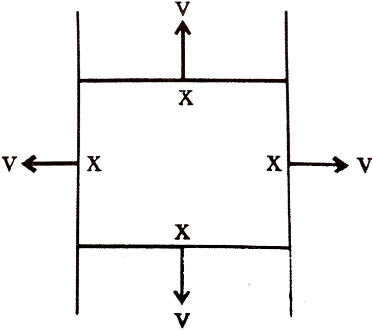

a
$\frac{d \phi}{d t}=B \frac{d A}{d t}$

$=B .4 x \frac{d x}{d t}$

$e=4 B x v$

$I=\frac{e}{R}=\frac{4 B x v}{4 x r}=\frac{B v}{r}$
