Question
Two parallel wires carry equal currents of 10A along the same direction and are separated by a distance of 2.0cm. Find the magnetic field at a point which is 2.0cm away from each of these wires
✓
Answer
$\cos\theta=\frac{1}{2},$$\theta=60^\circ\ \&\ \angle\text{AOB}=60^\circ$
$\text{B}=\frac{\mu_0\text{I}}{2\pi\text{r}}=\frac{10^{-7}\times2\times10}{2\times10^{-2}}=10^{-4}\text{T}$
So net is $[(10^{-4})^2]+(10^{-4})^2+2(10^{-8})\cos60^\circ]^\frac{1}{2}$
$=10^{-4}\Big[1+1+2\times\frac{1}{2}\Big]^\frac{1}{2}$
$=10^{-4}\times\sqrt3\text{T}$
$=1.732\times10^{-4}\text{T}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A circular copper-ring of radius r translates in its plane with a constant velocity v. A uniform magnetic field B exists in the space in a direction perpendicular to the plane of the ring. Consider different pairs of diametrically opposite points on the ring.
- Between which pair of points is the emf maximum? What is the value of this maximum emf?
- Between which pair of points is the emf minimum? What is the value of this minimum emf?
Two charged particles, having equal charges of $2.0 \times 10^{-5}C$ each, are brought from infinity to within a separation of $10\ cm.$ Find the increase in the electric potential energy during the process.
→Concentric equipotential surfaces due to a charged body placed at the centre are shown. Identify the polarity of the charge and draw the electric field lines due to it.
Two concentric circular coils $X$ and $Y$ of radii $16 \ cm$ and $10 \ cm,$ respectively, lie in the same vertical plane containing the north to south direction. Coil $X$ has $20$ turns and carries a current of $16 A;$ coil $Y$ has $25$ turns and carries a current of $18 A$. The sense of the current in $X$ is anticlockwise, and clockwise in $Y$, for an observer looking at the coils facing west. Give the magnitude and direction of the net magnetic field due to the coils at their centre.

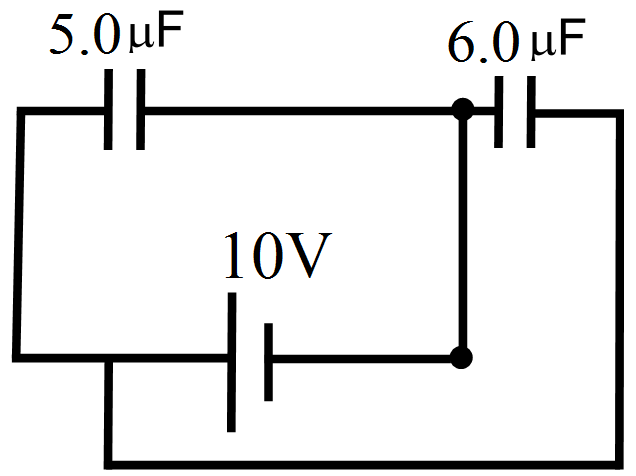

→Find the charge supplied by the battery in the arrangement shown in figure.
