Question
Two simple harmonic motions are represented by:
$\text{x}_1=10\sin\Big(4\pi\text{t}+\frac{\pi}{4}\Big)$
$\text{x}_2=5(\sin4\pi\text{t}+\sqrt{3}\cos4\pi\text{t})$
What is the ratio of the amplitudes?✓
Answer
$\text{x}_2=5\sin4\pi\text{t}+5\sqrt{3}\cos4\pi\text{t}$
Amplitude of $\text{x}_2=\sqrt{5^2+(5\sqrt{3})^2}=10$
Since the $\sin\pi\text{t}$ and $\cos4\pi\text{t}$ functions are out ofphase by $\frac{\pi}{2}.$
Amplitude of x2 = 10
$\therefore$ Ratio of amplitudes is 1 : 1
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
If several forces act on a particle, the total torque on the particle may be obtained by first finding the resultant force and then taking torque of this resultant. Prove this. Is this result valid for the forces acting on different particles of a body in such a way that their lines of action intersect at a common point?
Let A1 A2 A3 A4 A5 A6 A1 be a regular hexagon. Write the x-components of the vectors represented by the six sides taken in order. Use the fact that the resultant of these six vectors is zero, to prove that
→$\cos0+\cos\frac{\pi}{3}+\cos\frac{2\pi}{3}+\cos\frac{3\pi}{3}+\cos\frac{4\pi}{3}+\cos\frac{5\pi}{3}=0.$
Use the known cosine values to verify the result.Show graphically how gravitational field strength varies with distance from the centre of earth, outwards. Give the relation also.
A straight, long wire carries a current of 20A. Another wire carrying equal current is placed parallel to it. If the. force acting on a length of 10cm of the second wire is 2 ×10-5N, what is the separation between them?
The horn of a car emits sound with a dominant frequency of 2400Hz. What will be the apparent dominant frequency heard by a person standing on the road in front of the car if the car is approaching at 18.0km/h? Speed of sound in air = 340m/s.

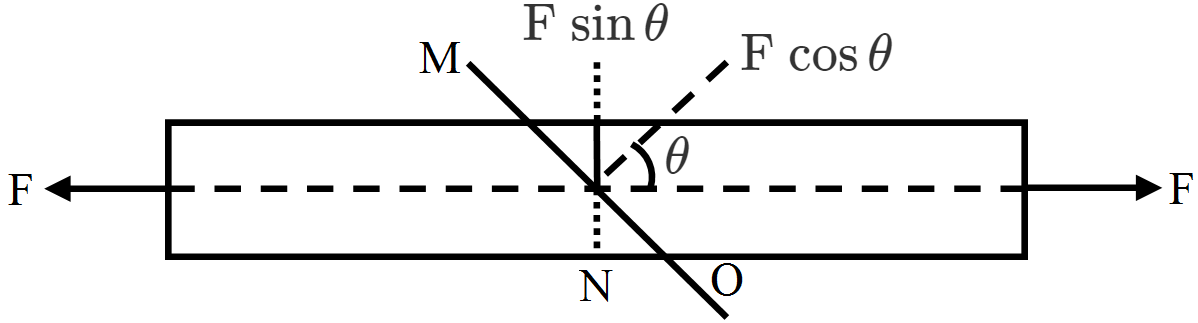

A bar of cross-section A is subjected to equal and opposite tensile forces at its ends. Consider a plane section of the bar whose normal makes an angle q with the axis of the bar.
