Which of the following relationships between the acceleration a and the displacement x of a particle involve simple harmonic motion?
- Aa = 0.7x
- Ba = -200x2
- Ca = -10x
- Da = 100x3
Question types
Oscillations question types
469 questions across 7 question groups — pick any mix to generate a Physics paper with step-by-step answer keys.
469
Questions
7
Question groups
5
Question types
01
M.C.Q (1 Marks)
82 Q→02Fill In The Blanks[1 Marks ]
18 Q→031 Marks Question
136 Q→042 Marks Questions
57 Q→053 Marks Question
77 Q→064 Marks Question
5 Q→075 Marks Questions
94 Q→Sample Questions
Oscillations questions
One sample from each question group in this chapter. Select any group above to see the full set with answer keys.
A particle executes simple harmonic motion between x = -A and x = +A. The time taken for it to go from 0 to $\frac{\text{A}}{2}$ is T1 and to go from $\frac{\text{A}}{2}$ to A is T2 Then:
- AT1 < T2
- BT1 > T2
- CT1 = T2
- DT1 = 2T2
SHM could be related to:
- ANon-uniform circular motion.
- BUniform circular motion.
- CStraight line motion.
- DProjectile motion.
The motion of satellites and planets is:
- APeriodic.
- BOscillatory.
- CSimple harmonic.
- DNon-periodic.
When frequency of oscillations is high then motion is called:
- APeriodic.
- BNon-periodic.
- C
- DRotatory.
Maximum displacement of the oscillating particle on either side of its mean position is called its .
Total energy of particle executing S.H.M. is given $\text{E}=2\pi^2\text{mv}^2\text{A}^2$
View full solution →When the maximum K.E. of a simple pendulum is K, then its displacement is when kinetic energy is $\frac{\text{K}}{2}$ and amplitude is a.
View full solution →The displacement y of a particle executing periodic motion is given by
View full solution →$\text{y}=4\cos^2\Big(\frac{\text{t}}{2}\Big)\sin(1000\text{t})$
This expression may be considered to be a result of the superposition of _______ independent harmonics.Acceleration of a particle in simple harmonic motion is .
Which of the following relationships between the acceleration a and the displacement x of a particle involve simple harmonic motion?
- a = 0.7x
- a = -200x2
- a = -10x
- a = 100x3
Which of the following examples represent periodic motion?
A swimmer completing one (return) trip from one bank of a river to the other and back.
A swimmer completing one (return) trip from one bank of a river to the other and back.
Which of the following examples represent periodic motion?
A hydrogen molecule rotating about its centre of mass.
A particle is in linear simple harmonic motion between two points, A and B, 10cm apart. Take the direction from A to B as the positive direction and give the signs of velocity, acceleration and force on the particle when it is:
At 4cm away from B going towards A.
A particle is in linear simple harmonic motion between two points, A and B, 10cm apart. Take the direction from A to B as the positive direction and give the signs of velocity, acceleration and force on the particle when it is:
At the end A.
At the end A.
Answer the following questions:
A man with a wristwatch on his hand falls from the top of a tower. Does the watch give correcttime during the free fall?
Answer the following questions:
View full solution →Time period of a particle in SHM depends on the force constant k and mass m of the particle: $\text{T}=2\pi\sqrt{\frac{\text{m}}{\text{k}}}.$ A simple pendulum executes SHM approximately. Why then is the time period of a pendulum independent of the mass of the pendulum?
The piston in the cylinder head of a locomotive has a stroke (twice the amplitude) of 1.0m. If the piston moves with simple harmonic motion with an angular frequency of 200rad/min, what is its maximum speed?
In Exercise, let us take the position of mass when the spring is unstreched as x = 0, and the direction from left to right as the positive direction of x-axis. Give x as a function of time t for the oscillating mass if at the moment we start the stopwatch (t = 0), the mass is:
At the maximum stretched position.
In what way do these functions for SHM differ from each other, in frequency, in amplitude or the initial phase?In Exercise, let us take the position of mass when the spring is unstreched as x = 0, and the direction from left to right as the positive direction of x-axis. Give x as a function of time t for the oscillating mass if at the moment we start the stopwatch (t = 0), the mass is:
At the mean position.
In what way do these functions for SHM differ from each other, in frequency, in amplitude or the initial phase?
At the mean position.
In what way do these functions for SHM differ from each other, in frequency, in amplitude or the initial phase?
Plot the corresponding reference circle for each of the following simple harmonic motions. Indicate the initial (t = 0) position of the particle, the radius of the circle, and the angular speed of the rotating particle. For simplicity, the sense of rotation may be fixed to be anticlockwise in every case: (x is in cm and t is in s).
View full solution →$\text{x}=-2\sin\Big(3\text{t}+\frac{\pi}{3}\Big)$
Answer the following questions:
View full solution →The motion of a simple pendulum is approximately simple harmonic for small angle oscillations. For larger angles of oscillation, a more involved analysis shows that T is greater than $2\pi\sqrt{\frac{\text{l}}{\text{g}}}.$ Think of a qualitative argument to appreciate this result.
Plot the corresponding reference circle for each of the following simple harmonic motions. Indicate the initial (t = 0) position of the particle, the radius of the circle, and the angular speed of the rotating particle. For simplicity, the sense of rotation may be fixed to be anticlockwise in every case: (x is in cm and t is in s).
$\text{x}=2\cos\pi\text{t}$
View full solution →$\text{x}=2\cos\pi\text{t}$
A simple pendulum of length l and having a bob of mass M is suspended in a car. The car is moving on a circular track of radius R with a uniform speed v. If the pendulum makes small oscillations in a radial direction about its equilibrium position, what will be its time period?
Plot the corresponding reference circle for each of the following simple harmonic motions. Indicate the initial (t = 0) position of the particle, the radius of the circle, and the angular speed of the rotating particle. For simplicity, the sense of rotation may be fixed to be anticlockwise in every case: (x is in cm and t is in s).
View full solution →$\text{x}=3\sin\Big(2\pi\text{t}+\frac{\pi}{4}\Big)$
Read the passage given below and answer the following questions from (i) to (v). There are no physical examples of absolutely pure simple harmonic motion. In practice we come across systems that execute simple harmonic motion approximately under certain conditions. Oscillations due to a spring: The simplest observable example of simple harmonic motion is the small oscillations of a block of mass m fixed to a spring, which in turn is fixed to a rigid wall. The block is placed on a frictionless horizontal surface. If the block is pulled on one side and is released, it then executes a to and fro motion about the mean position. Let x = 0, indicate the position of the centre of the block when the spring is in equilibrium. The positions marked as –A and +A indicate the maximum displacements to the left and the right of the mean position. We have already learnt that springs have special properties, which were first discovered by the English physicist Robert Hooke. He had shown that such a system when deformed is subject to a restoring force, the magnitude of which is proportional to the deformation or the displacement and acts in opposite direction. This is known as Hooke’s law. It holds good for displacements small in comparison to the length of the spring. At any time t, if the displacement of the block from its mean position is x, the restoring force F acting on the block is, F(x) = –k x The constant of proportionality, k, is called the spring constant, its value is governed by the elastic properties of the spring. A stiff spring has large k and a soft spring has small k. Equation is same as the force law for SHM and therefore the system executes a simple harmonic motion.
Damped oscillations
We know that the motion of a simple pendulum, swinging in air, dies out eventually. Why does it happen? This is because the air drag and the friction at the support oppose the motion of the pendulum and dissipate its energy gradually. The pendulum is said to execute damped oscillations. In damped oscillations, the energy of the system is dissipated continuously; but, for small damping, the oscillations remain approximately periodic. The dissipating forces are generally the frictional forces. The damping force is generally proportional to velocity of the bob and acts opposite to the direction of velocity. If the damping force is denoted by Fd, we have Fd = –bv where the positive constant b depends on characteristics of the medium (viscosity, for example) and the size and shape of the block, is usually valid only for small velocity.- Damping force is directly proportional to:
- Velocity
- Area
- Acceleration
- None of these
- Oscillations due to spring performs SHM for:
- Only small oscillations of spring
- Only for large oscillations of spring
- Both large as well as small oscillations of spring
- None of these
- Give expression for restoring force in spring while performing small SHM oscillations.
- Explain damped oscillations.
- Explain oscillations due to spring.

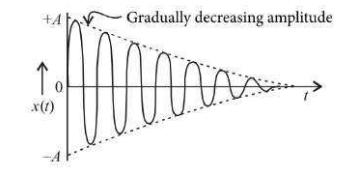

Read the passage given below and answer the following questions from 1 to 4. Damped Simple Harmonic Motion The oscillations in presence of dissipative force where the amplitude decreases gradually with the passage of time are called damped oscillations. A part of the energy of the oscillating system is lost in the form of heat, in overcoming these resistive forces, As a result, the amplitude of such oscillations decreases exponentially with time, as shown in figure. Eventually, these oscillations die out. In these oscillations, the amplitude of oscillation decreases exponentially due to damping forces like frictional force, viscous force, etc. Due to decrease in amplitude, the energy of the oscillator also goes on decreasing exponentially.
The force producing a resistance to the oscillation is called damping force.
View full solution → The force producing a resistance to the oscillation is called damping force. - particle oscillating under force $\overrightarrow{\text{F}}=-\text{k}\overrightarrow{\text{x}}-\text{b}\overrightarrow{\text{v}}$ is a (k and b are constants)
- Simple harmonic oscillator
- Linear oscillator
- Damped oscillator
- Forced oscillator
- Which of the following displacement-time graphs represent damped harmonic oscillation?
- In case of a force vibration, the resonance wave becomes very sharp when the
- Applied periodic force is small
- Quality factor is small
- Damping force is small
- Restoring force is small
- The S.I. unit of damping constant is:
- kg s
- kg2s
- kg m/s
- kg/s
Read the passage given below and answer the following questions from 1 to 5. Simple Harmonic Motion Simple harmonic motion is the simplest form of oscillation. A particular type of periodic motion in which a particle moves to and fro repeatedly about a mean position under the influence of a restoring force is termed as simple harmonic motion (S.H.M). A body is undergoing simple harmonic motion if it has an acceleration which is directed towards a fixed point, and proportional to the displacement of the body from that point. Acceleration $\text{a}\propto-\text{x}$
View full solution →$\Rightarrow\text{a}=-\text{kx}$ or $\frac{\text{d}^2\text{x}}{\text{dt}^2}=-\text{kx},$
where x = displacement at any instant t.- Which of the following is not a characteristics of simple harmonic motion?
- The motion is periodic.
- The motion is along a straight line about the mean position.
- The oscillations are responsible for the energy conversion.
- The acceleration of the particle is directed towards the extreme position.
- The equation of motion of a simple harmonic motion is:
-
$\frac{\text{d}^2\text{x}}{\text{dt}^2}=-\omega^2\text{x}$
-
$\frac{\text{d}^2\text{x}}{\text{dt}^2}=-\omega^2\text{t}$
-
$\frac{\text{d}^2\text{x}}{\text{dt}^2}=-\omega\text{x}$
-
$\frac{\text{d}^2\text{x}}{\text{dt}^2}=-\omega\text{t}$
- Which of the following expressions does not represent simple harmonic motion?
-
$\text{x}=\text{A}\cos\omega\text{t}+\text{B}\sin\omega\text{t}$
-
$\text{x}=\text{A}\cos(\omega\text{t}+\alpha)$
-
$\text{x}=\text{B}\sin(\omega\text{t}+\beta)$
-
$\text{x}=\text{A}\sin\omega\text{t}\cos^2\omega\text{t}$
- The time period of simple harmonic motion depends upon:
- Amplitude
- Energy
- Phase constant
- Mass
- Which of the following motions is not simple harmonic?
- Vertical oscillations of a spring
- Motion of a simple pendulum
- Motion of planet around the Sun
- Oscillation of liquid in a U-tube
Read the passage given below and answer the following questions from (i) to (v).
A motion that repeats itself at regular intervals of time is called periodic motion. Very often, the body undergoing periodic motion has an equilibrium position somewhere inside its path. When the body is at this position no net external force acts on it. Therefore, if it is left there at rest, it remains there forever. If the body is given a small displacement from the position, a force comes into play which tries to bring the body back to the equilibrium point, giving rise to oscillations or vibrations. Every oscillatory motion is periodic, but every periodic motion need not be oscillatory. Circular motion is a periodic motion, but it is not oscillatory. The smallest interval of time after which the motion is repeated is called its period. Let us denote the period by the symbol T. Its SI unit is second. The reciprocal of T gives the number of repetitions that occur per unit time. This quantity is called the frequency of the periodic motion. It is represented by the symbol n. The relation between n and T is $\text{n}=\frac{1}{\text{T}}$. The unit of n is thus s-1. After the discoverer of radio waves, Heinrich Rudolph Hertz (1857–1894), a special name has been given to the unit of frequency. It is called hertz (abbreviated as Hz). Answer the following.
View full solution →A motion that repeats itself at regular intervals of time is called periodic motion. Very often, the body undergoing periodic motion has an equilibrium position somewhere inside its path. When the body is at this position no net external force acts on it. Therefore, if it is left there at rest, it remains there forever. If the body is given a small displacement from the position, a force comes into play which tries to bring the body back to the equilibrium point, giving rise to oscillations or vibrations. Every oscillatory motion is periodic, but every periodic motion need not be oscillatory. Circular motion is a periodic motion, but it is not oscillatory. The smallest interval of time after which the motion is repeated is called its period. Let us denote the period by the symbol T. Its SI unit is second. The reciprocal of T gives the number of repetitions that occur per unit time. This quantity is called the frequency of the periodic motion. It is represented by the symbol n. The relation between n and T is $\text{n}=\frac{1}{\text{T}}$. The unit of n is thus s-1. After the discoverer of radio waves, Heinrich Rudolph Hertz (1857–1894), a special name has been given to the unit of frequency. It is called hertz (abbreviated as Hz). Answer the following.
- Every oscillatory motion is periodic motion true or false?
- True
- False
- Circular motion is
- Oscillatory motion
- Periodic motion
- Rotational motion
- None of these
- Define period. Give its SI unit and dimensions
- Define frequency of periodic motion. How it is related to time period
- What is oscillatory motion
Read the passage given below and answer the following questions from (i) to (v).
When a system (such as a simple pendulum or a block attached to a spring) is displaced from its equilibrium position and released, it oscillates with its natural frequency $\omega,$ and the oscillations are called free oscillations. All free oscillations eventually die out because of the ever present damping forces. However, an external agency can maintain these oscillations. These are called forced or driven oscillations. We consider the case when the external force is itself periodic, with a frequency wd called the driven frequency. The most important fact of forced periodic oscillations is that the system oscillates not with its natural frequency $\omega,$ but at the frequency $\omega,$ d of the external agency; the free oscillations die out due to damping. The most familiar example of forced oscillation is when a child in a garden swing periodically presses his feet against the ground (or someone else periodically gives the child a push) to maintain the oscillations. The maximum possible amplitude for a given driving frequency is governed by the driving frequency and the damping, and is never infinity. The phenomenon of increase in amplitude when the driving force is close to the natural frequency of the oscillator is called resonance. In our daily life, we encounter phenomena which involve resonance. Your experience with swings is a good example of resonance. You might have realized that the skill in swinging to greater heights lies in the synchronization of the rhythm of pushing against the ground with the natural frequency of the swing.
View full solution →When a system (such as a simple pendulum or a block attached to a spring) is displaced from its equilibrium position and released, it oscillates with its natural frequency $\omega,$ and the oscillations are called free oscillations. All free oscillations eventually die out because of the ever present damping forces. However, an external agency can maintain these oscillations. These are called forced or driven oscillations. We consider the case when the external force is itself periodic, with a frequency wd called the driven frequency. The most important fact of forced periodic oscillations is that the system oscillates not with its natural frequency $\omega,$ but at the frequency $\omega,$ d of the external agency; the free oscillations die out due to damping. The most familiar example of forced oscillation is when a child in a garden swing periodically presses his feet against the ground (or someone else periodically gives the child a push) to maintain the oscillations. The maximum possible amplitude for a given driving frequency is governed by the driving frequency and the damping, and is never infinity. The phenomenon of increase in amplitude when the driving force is close to the natural frequency of the oscillator is called resonance. In our daily life, we encounter phenomena which involve resonance. Your experience with swings is a good example of resonance. You might have realized that the skill in swinging to greater heights lies in the synchronization of the rhythm of pushing against the ground with the natural frequency of the swing.
- When a system oscillates with its natural frequency ω, and the oscillations are called:
- Free oscillations.
- Forced oscillations.
- All free oscillations eventually die out because of:
- Damping force.
- electromagnetic force.
- None of these.
- What is free oscillation?
- What is forced oscillations?
- What is resonance?
A mass attached to a spring is free to oscillate, with angular velocity $\omega,$ in a horizontal plane without friction or damping. It is pulled to a distance x0 and pushed towards the centre with a velocity $\upsilon_0$ at time t = 0. Determine the amplitude of the resulting oscillations in terms of the parameters $\omega,$ x0 and $\upsilon_0.$ [Hint: Start with the equation $\text{x}=\text{a}\cos(\omega\text{t}+\theta)$ and note that the initial velocity is negative.]
View full solution →Show that for a particle in linear SHM the average kinetic energy over a period of oscillation equals the average potential energy over the same period.
The motion of a particle executing simple harmonic motion is described by the displacement function,
View full solution →$\text{x(t)}=\text{A}\cos(\omega\text{t}+\phi).$
If the initial (t = 0) position of the particle is 1cm and its initial velocity is
$\omega\text{ cm/s,}$ what are its amplitude and initial phase angle? The angular frequency of the particle is $\pi\text{s}^{-1}.$ If instead of the cosine function, we choose the sine function to describe the SHM: $\text{x}=\text{B}\sin(\omega\text{t}+\alpha),$ what are the amplitude and initial phase of the particle with the above initial conditions.You are riding in an automobile of mass 3000kg. Assuming that you are examining the oscillation characteristics of its suspension system. The suspension sags 15cm when the entire automobile is placed on it. Also, the amplitude of oscillation decreases by 50% during one complete oscillation. Estimate the values of (a) the spring constant k and (b) the damping constant b for the spring and shock absorber system of one wheel, assuming that each wheel supports 750kg.
A cylindrical piece of cork of density of base area A and height h floats in a liquid of density $\rho_1.$ The cork is depressed slightly and then released. Show that the cork oscillates up and down simple harmonically with a period $\text{T}=2\pi\sqrt{\frac{\text{h}\rho}{\rho_1\text{g}}}$ where $\rho$ is the density of cork. (Ignore damping due to viscosity of the liquid).
