MCQ
Two spherical, nonconducting, and very thin shells of uniformly distributed positive charge $Q$ and radius d are located a distance $10d$ from each other. A positive point charge $q$ is placed inside one of the shells at a distance $d/2$ from the center, on the line connecting the centers of the two shells, as shown in the figure. What is the net force on the charge $q $ ?
  • $\frac{{qQ}}{{361\pi {\varepsilon _0}{d^2}}}$ to the left
  • B
    $\frac{{qQ}}{{361\pi {\varepsilon _0}{d^2}}}$ to the right
  • C
    $\frac{{362qQ}}{{361\pi {\varepsilon _0}{d^2}}}$ to the left
  • D
    $\frac{{360qQ}}{{361\pi {\varepsilon _0}{d^2}}}$ to the right

Answer

Correct option: A.
$\frac{{qQ}}{{361\pi {\varepsilon _0}{d^2}}}$ to the left
a
Electric force on charge $q$ due to sphre $A$ is zero.

But electric force due to sphere $B$ on charge $q$ is

$\mathrm{F}=\frac{9 Q}{4 \pi \varepsilon_{0}\left(\frac{19}{2} \mathrm{d}\right)^{2}}$ towards left

$=\frac{\mathrm{qQ}}{361 \pi \varepsilon_{0} \mathrm{d}^{2}}$ towards left

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

The critical angle between an equilateral prism and air is $45^o $. If the incident ray is perpendicular to the refracting surface, then
By a monochromatic wave, we mean
A beam of electron is used in an YDSE experiment. The slit width is d. When the velocity of electron is increased, then
Which of the following graphs correctly represents the variation of magnetic field with distance $R$ from a long straight current carrying conductor ?
A magnetic field can be produced by
Which of the following is not a correct statement
The power obtained in a reactor using $^{235}U$ disintegration is $1000\,\, kW.$ The mass decay of $^{235}U$ per hour is............ $\mu g$

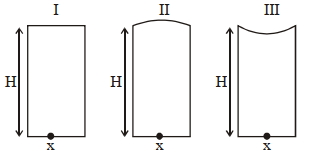

Three glass cylinders of equal height $H =30 cm$ and same refractive index $n =1.5$ are placed on a horizontal surfaces shown in figure. Cylinder I has a flat top, cylinder II has a convex top and cylinder III has a concave top. The radii of curvature of the two curved tops are same $( R =3 m )$, If $H _1, H _2$ and $H _3$ are the apparent depths of a point $X$ on the bottom of the three cylinders, respectively, the correct statement($s$) is/are
