Mechanical Properties of Fluids — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsMechanical Properties of Fluids2 Marks
Question
Two syringes of different cross$-$sections $($without needles$)$ filled with water are connected with a tightly fitted rubber tube filled with water. Diameters of the smaller piston and larger piston are $1.0\ cm$ and $3.0\ cm$ respectively.
  1. Find the force exerted on the larger piston when a force of $10N$ is applied to the smaller piston.
  2. If the smaller piston is pushed in through $6.0\ cm$, how much does the larger piston move out?
✓

Answer

Here, $d_1 = 1.0\ cm, d_2 = 3.0\ cm$, Force on smaller piston $F_1 = 10N$.
  1. According to Pascal's law of transmission of pressure $\text{P}=\frac{\text{F}_1}{\text{A}_1}=\frac{\text{F}_2}{\text{A}_2}.$
$\therefore\frac{\text{F}_2}{\text{F}_1}=\frac{\text{A}_2}{\text{A}_1}$
$=\frac{\text{r}^2_2}{\text{r}^2_1}=\Big(\frac{\text{d}_2}{\text{d}_1}\Big)^2$
$=\Big(\frac{3.00\text{cm}}{1.0\text{cm}}\big)^2=9$
$\Rightarrow\text{F}_2=\text{F}_1\times9$
$=10\times9$
$=90\text{N}.$
  1. Water is considered to be completely incompressible. Therefore, volume covered by the movement of smaller piston inwards is exactly equal to volume moved outwards due to movement of larger piston, distance through which smaller piston is pushed $L_1 = 6.0\ cm$. Let larger piston is pushed by a distance $L_2$ then,
$\text{V}=\text{L}_1\text{A}_1=\text{L}_2\text{A}_2$
$\therefore\text{L}_2=\text{L}_1\Big(\frac{\text{A}_1}{\text{A}_2}\Big)=\text{L}_2\Big(\frac{\text{d}_1}{\text{d}_2}\Big)^2$
$=6.0\text{cm}\times\Big(\frac{1.0\text{cm}}{3.0\text{cm}}\Big)^2$
$=\frac69\text{cm}$
$=0.67\text{cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Mechanical Properties of Fluids→Mechanical Properties of Fluids — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

It is done to accommodate the linear expansion of railway line during summer. If the gap is not left in summer, the lines will bend causing a threat of derailment.
→
What is convection current? How does it form land and sea breeze?
→
What do you mean by inertia of motion? Give an example to illustrate it.
→
Can a flight of a bird, an example of composition of vectors. Why?
→
A glass ball of radius 4 mm is released into the sea. It starts moving with a velocity of 52.3 $m / sec$. If the density of sea water is $1.015 \times 10^3 kg /$ $m ^3$ then what will be the value of the viscous force acting on the bullet? Find out coefficient of viscosity of sea water $=0.01$ Poise.
→
Two sitars A and B, playing the note 'Dha' are slightly out of tune and produce beats of frequency 5Hz. Then tension of the string B is slightly increased and the beat frequency is found to decrease to 3Hz. What is the original frequency of B if the frequency of A is 427Hz?
→
In the figure, the blocks are in contact with each other $m_1=3 kg, m_2=1 kg$. A horizontal force $F = 4 \mathrm { N }$. How much force can be applied :(i) On $m_1$ from the right side,
(ii) On $m_2$ from the left side? What will be the contact force between the two blocks?
→
Assuming the earth to be a uniform sphere of radius 6400 km and density $5.5 gcm ^{-3}$, find the value of g on its surface. Given G $=6.66 \times 10^{-11} Nm ^2 kg^{-2}$.
→
Define the term wave motion. Give four important characteristics of wave motion.
→

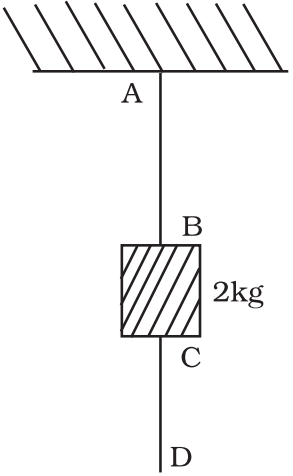

A mass of 2kg is suspended with thread AB Thread CD of the same type is attached to the other end of 2kg mass. Lower thread is pulled gradually, harder and harder in the downward directon so as to apply force on AB. Which of the threads will break and why?
→
