Two wires $A$ and $B $ of same length and of the same material have the respective radii ${r_1}$ and ${r_2}$. Their one end is fixed with a rigid support, and at the other end equal twisting couple is applied. Then the ratio of the angle of twist at the end of $A$ and the angle of twist at the end of $B $ will be

A
$\frac{{r_1^2}}{{r_2^2}}$
B
$\frac{{r_2^2}}{{r_1^2}}$
✓
$\frac{{r_2^4}}{{r_1^4}}$
D
$\frac{{r_1^4}}{{r_2^4}}$

✓

Answer

Correct option: C.

$\frac{{r_2^4}}{{r_1^4}}$

c
(c)Twisting couple $C = \frac{{\pi \eta {r^4}\theta }}{{2l}}$

If material and length of the wires $A$ and $B$ are equal and equal twisting couple are applied then

$\theta \propto \frac{1}{{{r^4}}}$ $\Rightarrow $ $\frac{{{\theta _1}}}{{{\theta _2}}} = {\left( {\frac{{{r_2}}}{{{r_1}}}} \right)^4}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 8. mechanical properties of solids→8. mechanical properties of solids — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

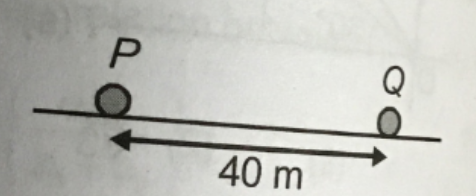

Two particle $P$ and $Q$ are initially $40m$ apart $P$ behind $Q$. Particle $P$ starts moving with a uniform velocity $10m/ s$ towards $Q.$ Particle $Q$ starting from rest has an acceleration $2ms^2$ in the direction of velocity of $P.$ Then the minimum distance between $P$ and $Q$ will be:
