Under what condition in an arrangement of two plane mirrors, incident ray and reflected ray will always be parallel to each other, whatever may be angle of incidence. Show the same with the help of diagram.
Download our app for free and get started

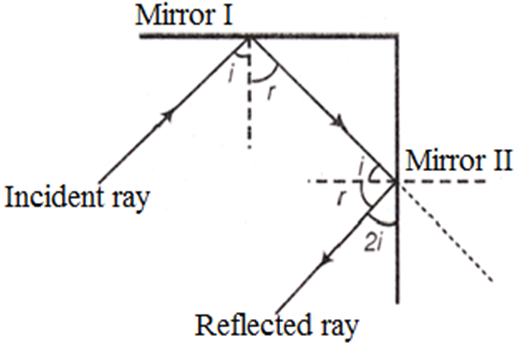

When two plane mirrors are placed at right angle with each other, then the incident ray and reflected ray will always be parallel to each other, irrespective of the angle of incidence.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionThe image of an object place at 60cm in front of a lens is obtained on a screen at a distance of 120cm from it. Find the focal length of the lens. What would be the lens? What would be the height of the image? If the object is 5cm high?
- 2When an object is placed at a distance of 50cm from a concave spherical mirror, the magnification produced is,$-\frac{1}{2}$ Where should the object be placed to get a magnification of, $-\frac{1}{5}?$View Solution
- 3View SolutionAn object 60cm from a lens gives a virtual image at a distance of 20cm in front of the lens. What is the focal length of the lens? Is the lens converging or diverging? Give reasons for your answer.
- 4View SolutionDraw a ray diagram to show the path of the refracted ray in each of the following cases:
A ray of light incident on a concave lens is:- Passing through its optical centre.
- Parallel to its principal axis.
- Directed towards its principal focus.
- 5View SolutionA bright object 50mm high stands on the axis of a concave mirror of focal length 100mm and at a distance of 300mm from the concave mirror. How big will the image be?
- 6View SolutionCalculate the image distance for an object of height 12mm at a distance of 0.20m from a concave lens of focal length 0.30 m, and state the nature and size of the image.
- 7View SolutionWhat is the principle of reversibility of light? Show that the incident ray of light is parallel to the emergent ray of light when light falls obliquely on a side of a rectangular glass slab.
- 8View SolutionTo construct ray diagrams, two rays of light are generally so chosen that it is easy to determine their directions after reflection from a mirror. Choose two such rays and state the path I direction of these rays after reflection from a concave mirror. Use these two rays to find the position and nature of the image of an object placed at a distance of 8cm from a concave mirror of focal length 12cm.
- 9View SolutionAt what distance from a concave mirror of focal length 10cm should an object 2cm long be placed in order to get an erect image 6cm tall?
- 10View SolutionHow far should an object be placed from a convex lens of focal length 20 cm to obtain its image at a distance of 30 cm from the lens? What will be the height of the image if the object is 6 cm tall?
