Using a graph paper, plot the point A (6, 4) and B (0, 4).
(a) Reflect A and B in the origin to get the image A’ and B’.
(b) Write the co-ordinates of A’ and B’.
(c) Sate the geometrical name for the figure ABA’B’.
(d) Find its perimeter.
Exercise 12 (B) | Q 15 | Page 171
Download our app for free and get started

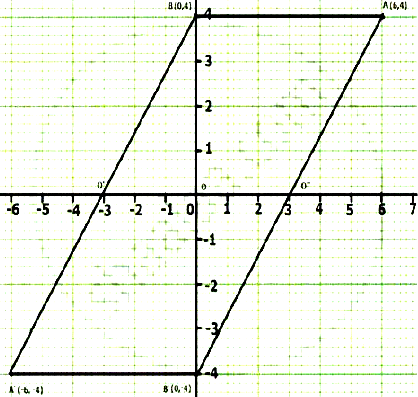

(a)
(b) Co-ordinates of A'=(-6,-4)
Co-ordinates of B'=(0,-4)
(c) ABA'B' is parallelogram.
(d) In ABA'B',BB'=8 units, A'B'=6 units
$\therefore B A \prime=\sqrt{6^2+8^2}=\sqrt{36+64}=\sqrt{100}=10$ units
$\Rightarrow B ı A=10$ units
$A B=A^{\prime} B^{\prime}=6$ units
∴ the perimeter of ABA'B'=AB+BA'+A'B'+B'A
=6+10+6+10
=32 units
(b) Co-ordinates of A'=(-6,-4)
Co-ordinates of B'=(0,-4)
(c) ABA'B' is parallelogram.
(d) In ABA'B',BB'=8 units, A'B'=6 units
$\therefore B A \prime=\sqrt{6^2+8^2}=\sqrt{36+64}=\sqrt{100}=10$ units
$\Rightarrow B ı A=10$ units
$A B=A^{\prime} B^{\prime}=6$ units
∴ the perimeter of ABA'B'=AB+BA'+A'B'+B'A
=6+10+6+10
=32 units
