Question
Using $\text{B}=\mu_0\text{H},$ find the ratio $\frac{\text{E}_0}{\text{H}_0}$ for a plane electromagnetic wave propagating through vacuum. Show that it has the dimensions of electric resistance. This ratio is a universal constant called the impedance of free space.

Answer

$\text{B}=\mu_0\text{H}$

$\text{H}=\frac{\text{B}}{\mu_0}$

$\frac{\text{E}_0}{\text{H}_0}=\frac{\frac{\text{B}_0}{(\mu_0\in_0\text{C})}}{\frac{\text{B}_0}{\mu_0}}=\frac{1}{\in_0\text{C}}$

$=\frac{1}{8.85\times10^{-12}\times3\times10^8}$

$=376.6\Omega=377\Omega$

$\text{Dimension}\frac{1}{\in_0\text{C}}=\frac{1}{\big[\text{LT}^{-1}\big]\big[\text{M}^{-1}\text{L}^{-3}\text{T}^{4}\text{A}^2\big]}$

$=\frac{1}{\text{M}^{-1}\text{L}^{-2}\text{T}^{3}\text{A}^2}=\text{M}^1\text{L}^2\text{T}^{-3}\text{A}^{-2}=[\text{R}]$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

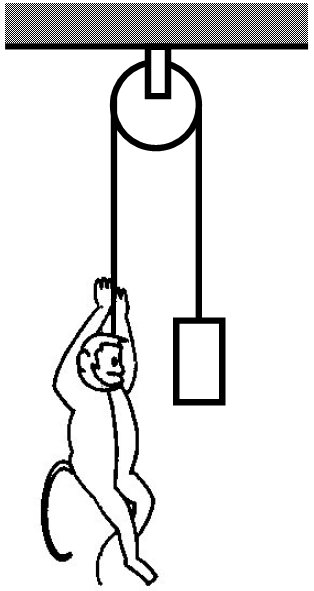

A monkey is climbing on a rope that goes over a smooth light pulley and supports a block of equal mass at the other end figure. Show that whatever force the monkey exerts on the rope, the monkey and the blockmove in the same direction with equal acceleration. If initially both were at rest, their separation will not change as time passes.
