Question

Using ruler and compasses only, construct a parallelogram $\text{ABCD}$ using the following data$: AB = 6 \ cm, AD = 3 \ cm$ and $\angle DAB = 45^o$. If the bisector of $\angle DAB$ meets $DC$ at $P$,prove that $\angle APB$ is a right angle.

✓

Answer

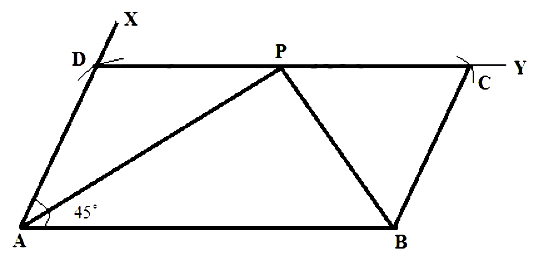

Steps:
$1$. draw $A B=6 \ cm$.
$2$. With $A$ as a center draw a line $A X$ such that $\angle B A X=45^{\circ}$.
$3$. With $A$ as a center and radii, $3 \ cm$ draw an arc on $AD$.
$4$. now with $D$ and $B$ as a center and radii $6 \ cm$ and $3 \ cm$ draw arcs cutting each other at $C$.
$5$. Join $DC$ and $BC$.
$\text{ABCD}$ is the required parallelogram.
Here
$\angle PAB =\angle APD\dots ...[$ Alternate angles $]$
$\angle C P B=\angle PBA \dots...[$ Alternate angles $]$
Now,
$\angle DPA +\angle APB +\angle CPB =180^{\circ} \ldots \ldots . \text { (i) }$
Also, considering $\text{APB},$
$\angle PAB +\angle PBA +\angle APB =180^{\circ} \ldots \ldots . \text { (ii) }$
Therefore, from $(i)$ and $(ii)$
$\angle APB =90^{\circ}$
Hence proved.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "[5 marks sum]" from Construction of Polygons (Using ruler and compass only)→Construction of Polygons (Using ruler and compass only) — all question types→MATHEMATICS STD 9 question papers→ICSE Board STD 9 question papers→ICSE Board question paper generator→

Similar questions

Solve the following equations graphically$:\ x=4 , \frac{3 x}{3}-y=5$

A and B each have a certain number of marbles. A says to B, "If you give 30 to me, I will have twice as many as left with you." B replies, "If you give me 10, I will have thrice as many as left with you." How many marbles does each have?

If the following pair of the triangle is congruent? state the condition of congruency:In $\triangle A D C$ and $\triangle P Q R, B C=\mathrm{QR}, \angle \mathrm{A}=90^{\circ}, \angle \mathrm{C}=\angle \mathrm{R}=40^{\circ}$ and $\angle \mathrm{Q}=50^{\circ}$.

Plot each of the following points on a graph paper.
(i) A(6, 3) (ii) B(- 4, 1) (iii) C(- 2,- 5) (iv) D(2, - 5)
(v) P(4,0) (vi) Q(0, 3) (vii) R(- 3, - 3) (viii) S(0, - 3)

Make $f$ the subject of the formula $D=\sqrt{\left(\frac{f+p}{f-p}\right)}$. Find $f_r$ when $D=13$ and $P=21$.

The difference between the outer and inner curved surface area of a hollow cylinder is $264 \ cm^2$. If its height is $14 \ cm$ and the volume of the material in it is $1980 \ cm^3$, find its total surface area.

$A (- 2, 2), B(8, 2)$ and $C(4, - 4)$ are the vertices of a parallelogram $\text{ABCD}$.
By plotting the given points on a graph paper; find the co$-$ordinates of the fourth vertex $D$.
Also, form the samegraph,state the co$-$ordinates of the mid$-$points of the sides $AB$ and $CD$.

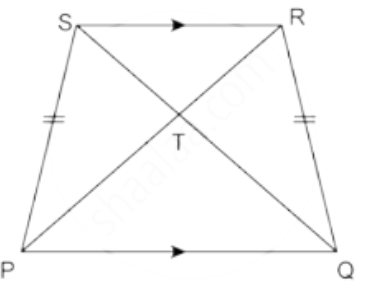

In the given figure, $\text{PQRS}$ is a trapezium in which $PQ \| SR$ and $PS = QR$. Prove that: $\angle PSR = \angle QRS$ and $\angle SPQ = \angle RQP$
