Question
Using ruler and compasses only, draw an angle of measure $135^\circ .$
✓
Answer
We draw a line $AB$ and mark a point $O$ on it. With a convenient radius and centre at $O,$ draw an arc $PQ$ with the help of a compass intersecting the line $AB$ at $P$ and $Q.$ With the same radius and centre at $P,$ draw another arc intersecting the arc $PQ$ at $R.$ With the same radius and centre at $Q,$ draw one more arc intersecting the arc $PQ$ at $S,$ opposite to $P.$ Taking $S$ and $R$ as centres and radius more than half of $SR,$ draw two arcs intersecting each other at $T.$ Join $O$ and $T$ intersecting the arc $PQ$ at $C.$ Taking $C$ and $Q$ as centres and radius more than half of $CQ,$ draw two arcs intersecting each other at $D.$ Join $O$ and $D$ and extend it to $X$ to form the ray $OX.$
$\angle\text{AOX}$ is the required angle of measure $135^\circ .$
$\angle\text{AOX}$ is the required angle of measure $135^\circ .$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Draw an angle of $60^\circ ,$ using a pair of compasses. Bisect it to make an angle of $30^\circ .$
→Draw number line and locate the points on them: $\frac25,\;\frac35,\frac85,\;\frac45$
→Construct the following angles with the help of a protractor: $45^\circ , 67^\circ , 38^\circ , 110^\circ , 179^\circ , 98^\circ , 84^\circ $
→In a village six fruit merchants sold the number of fruit baskets in a particular season:
Observe this pictograph and answer the question: Which merchant sold the maximum number of baskets?
→| Number of fruit merchants | Number of fruit baskets  $- 100$ Fruit baskets |
| Rahim |  |
| Lakhanpal |  |
| Anwar |  |
| Martin |  |
| Ranjit Singh |  |
| Joseph |  |

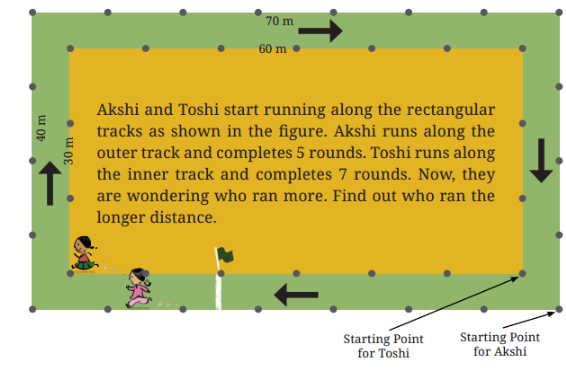

Think and mark the positions as directed:
