Question
Using the concept of force between two infinitely long parallel current carrying conductors, define one ampere of current.
✓
Answer
Definition: One ampere is the value of steady current which when maintained in each of the two very long,
straight, parallel conductors of negligible cross$-$section and placed one metre apart in vaccum,
would produce on each of these conductors a force equal of $2 \times 10-7 N/m$ of its length.
Alternate Answer
If the student writes $\text{F} = \frac{\mu_{o}}{2\pi}\frac{\text{I}_{1}\text{I}_{2}}{\text{R}}\text{L}$ and says that when $I_1 = I_2= 1$ ampere
$R = 1$ meter and $L = 1$ meter, then
$F= 2 \times 10^{-7} N$
straight, parallel conductors of negligible cross$-$section and placed one metre apart in vaccum,
would produce on each of these conductors a force equal of $2 \times 10-7 N/m$ of its length.
Alternate Answer
If the student writes $\text{F} = \frac{\mu_{o}}{2\pi}\frac{\text{I}_{1}\text{I}_{2}}{\text{R}}\text{L}$ and says that when $I_1 = I_2= 1$ ampere
$R = 1$ meter and $L = 1$ meter, then
$F= 2 \times 10^{-7} N$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Two charged particles are placed at a distance $1.0\ cm$ apart. What is the minimum possible magnitude of the electric force acting on each charge?
→Kamla peddles a stationary bicycle. The pedals of the bicycle are attached to a 100 turn coil of area $0.10 m ^2$. The coil rotates at half a revolution per second and it is placed in a uniform magnetic field of $0.01 T$ perpendicular to the axis of rotation of the coil. What is the maximum voltage generated in the coil?

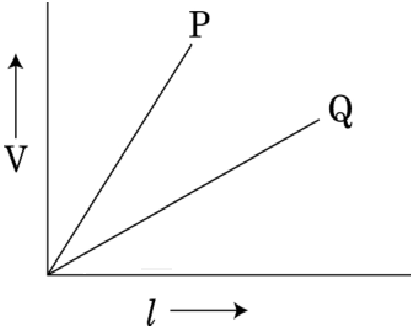

→The variation of potential V with length l in case of two potentiometers wires P and Q is as shown. Which one of these will you prefer comparing emfs of two primary cells and why?
