What are the charges stored in the $1 \,\mu F$ and $2 \,\mu F$ capacitors in the circuit below, once the currents become steady?
KVPY 2014, Medium
Download our app for free and get startedPlay store
(b)

In steady state (af ter the capacitors are fully charged), no current flows through the branches containing capacitors. So, in steady state, given circuit is equivalent to circuit shown below.

Now, current in circuit is

$i=\frac{E}{R_{\text {total }}}=\frac{6}{3 \times 10^3}=2 \times 10^{-3} \,A$

Now, potential drop across $1 \mu F$ and $2 \,\mu F$ capacitors = potential drop across $2 \,k \Omega$ resistance

$=i R=2 \times 10^{-3} \times 2 \times 10^3=4 \,V$

So, charges stored in capacitors are

$Q_1=C_1 V=1 \times 10^{-6} \times 4=4 \,\mu C$

$\text { and } \quad Q_2=8 \,\mu C$

art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1

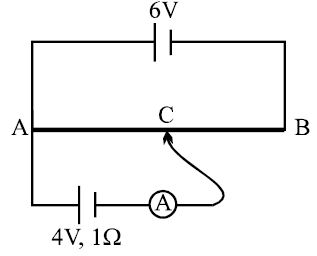

    $A \,6 \,V$ battery of negligible internal resistance is connected across a uniform wire of length $1\, m$. The positive terminal of another battery of emf $4\,V$ and internal resistance $1\, \Omega$ is joined to the point $A$ as shown in figure. The ammeter shows zero deflection when the jockey touches the wire at the point $C$. The $AC$ is equal to
