What is meant by the ‘angle of incidence’ and the ‘angle of refraction’ for a ray of light? Draw a labelled ray diagram to show the angle of incidence and the angle of refraction for a refracted ray of light.
Download our app for free and get started

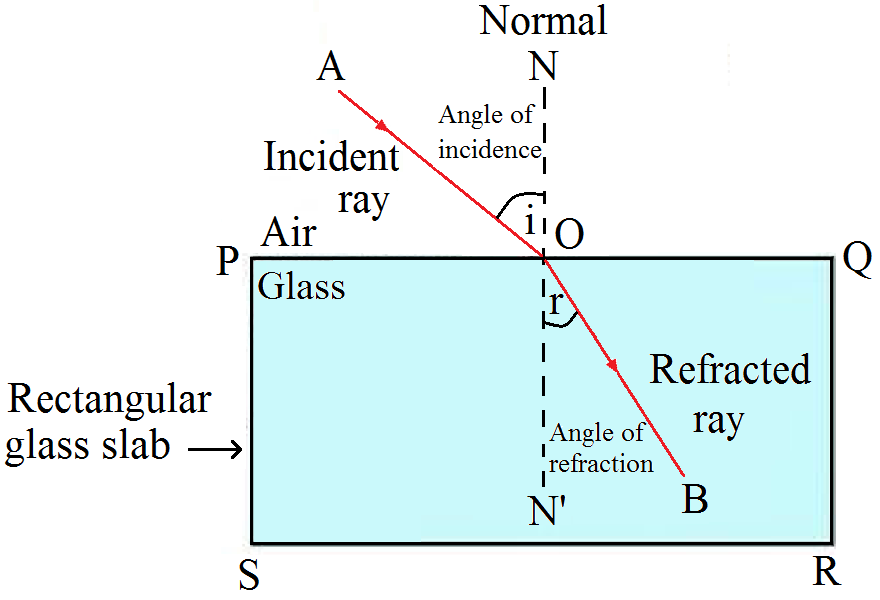

The angle between the incident ray and normal at the point of incidence is called angle of incidence. The angle between the refracted ray and normal at the point of refraction is called angle of refraction.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View Solution
- An object 3cm high is placed 24cm away from a convex lens of focal length 8cm. Find by calculations, the position, height and nature of the image.
- If the object is moved to a point only 3 cm away from the lens, what is the new position, height and nature of the image?
- Which of the above two cases illustrates the working of a magnifying glass?
- 2View SolutionDescribe the New Cartesian Sign Convention used in optics. Draw a labelled diagram to illustrate this sign convention.
- 3View SolutionAn object 20cm from a spherical mirror gives rise to a virtual image 15cm behind the mirror. Determine the magnification of the image and the type of mirror used.
- 4View SolutionA lens of focal length 20cm is used to produce a ten times magnified image of a film slide on a screen. How far must the slide be placed from the lens ?
- 5View SolutionAn object is 2m from a lens which forms an erect image one-fourth (exactly) the size of the object. Determine the focal length of the lens. What type of lens is this?
- 6View SolutionState the types of mirrors used for,
- Headlights.
- Rear view mirrors, in cars and motorcycles.
- 7View SolutionAn object 2cm in size is placed 30cm in front of a concave mirror of focal length 15cm. At what distance from the mirror should a screen be placed in order to obtain a sharp image? What will be the nature and the size of the image formed? Draw a ray diagram to show the formation of the image in this case.
- 8View SolutionWhat would your image look like if you stood dose to a large:
- Convex mirror?
- Concave mirror?
- 9View SolutionA person got his eyes tested by an optician. The prescription for the spectacle lenses to be made reads:
Left eye: +2.50D, Right eye: +2.00D- State whether these lenses are thicker in the middle or at the edges.
- Which lens bends the light rays more strongly?
- State whether these spectacle lenses will converge light rays or diverge light rays.
- 10View Solution
Draw the following diagram, in which a ray of light is incident on a concave/convex mirror, on your answer sheet. Show the path of this ray, after reflection, in each case.
